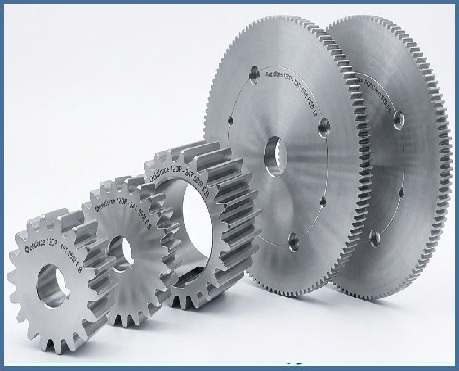

SPUR GEARS

Octaforce  offers Spur gears that are  used for speed reduction or increase, torque multiplication, resolution and precision enhancement for alignment systems.

Spur Gears Octaforce Spur Gears

Buy spur gear from Octaforce at very competitive price . We are one of the most reputed Spur Gears suppliers. You can buy standard Spur Gears or send us design for Custom Spur Gears design .Spur Gears are manufactured using most advance Machines .

To know the stock of Spur Gears send us inquiry on sales@octaforce.com . We can offer you in Octaforce Brand and also from other spur gear manufacturers .

Spur Gears 48 and 32 Diametral Pitch
Spur Gears 32 and 24 Diametral Pitch
Spur Gears 24 and 20 Diametral Pitch
Spur Gears 24 and 20 Diametral Pitch
Spur Gears 20 and 16 Diametral Pitch
Spur Gears 20 and 16 Diametral Pitch
Spur Gears 16 and 12 Diametral Pitch
Spur Gears 16 and 12 Diametral Pitch
Spur Gears 12 and 10 Diametral Pitch
Spur Gears 12 and 10 Diametral Pitch
Spur Gears 10 and 8 Diametral Pitch
Spur Gears 10 and 8 Diametral Pitch
Spur Gears 8 and 6 Diametral Pitch
Spur Gears 8 and 6 Diametral Pitch
Spur Gears 6 and 5 Diametral Pitch
Spur Gears 6 and 5 Diametral Pitch
Spur Gears 4 and 3 Diametral Pitch
Spur Gears 4 and 3 Diametral Pitch
Change Gears 20 Diametral Pitch
Change Gears 20 Diametral Pitch
Change Gears 16 Diametral Pitch
Change Gears 16 Diametral Pitch
Change Gears 12 Diametral Pitch
Change Gears 12 Diametral Pitch
Change Gears 10 Diametral Pitch
Change Gears 10 Diametral Pitch

Types of Spur Gears with Octaforce .

  1. Double Spur Gears
  2. Helical Spur Gears
  3. Large Spur Gears
  4. Metric spur gear
  5. Straight Spur Gear
  6. worm and spur gear
  7. spur gear and rack
  8. Spur gear part spares

Material available for Spur Gear

  1. Cast Iron spur gears

Cast Iron Spur Gears

2. Plastic spur gear

Plastic Spur Gears

3. Nylon spur gear

Nylon Spur Gears

4. Mild Steel spur gears

Mild Steel Gears

5. Stainless Steel spur gears

Stainless Steel Spur Gears

6. EN - 8, EN-19, EN - 24, EN-31, EN-36

7. Carbon Steel spur gear

8. Grade 25 IS 210 spur gears

9. Gun metal & PB - 2 spur gear set

Spur gears, which are designed to transmit motion and power between parallel shafts, are the most economical gears in the power transmission industry.

We offer both 14 1/2° and 20° PA (pressure angle), involute, and full-depth system gears. 20° PA is generally recognized as having a higher load carrying capacity; however, 14 1/2° PA gears are used extensively as well. This is because the lower pressure angle reduces change in backlash due to center distance variation and concentricity errors. The 14 1/2° PA also provides a higher contact ratio for smoother, quieter operation.

Boston Gear spur gears are available through our Guaranteed Same Day Shipment from our world class manufacturing center in Charlotte, NC. Many different gears with a variety of bore sizes, keyways, and setscrews are routinely in stock, but if the particular bore/keyway/setscrew combination needed is not readily available, our machining experts can alter any non-hardened gear

Product Features

  • Transmits motion and power efficiently between parallel shafts.
  • Our 20° PA spur gear has a high load-carrying capacity for enhanced performance.
  • The 14 1/2° PA spur gear offers smooth, quiet operation.
  • Spur gears are manufactured in Delrin, non-metallic, brass, steel, and cast iron materials for maximum versatility.
  • Non-metallic (phenolic - grade C) material provides quiet, corrosion resistant operation.

Octaforce is a leading manufacturer and Exporter of all types of Spur Gears. Octaforce supplies all types of gears in various industries including Sugar Factories, Steel plants, Cement plants, Rolling mills, Textile mills, packaging industries, copper mines and oil and gas industries.

Spur Gear is the widely used gears in all types of machines in various industries, having Straight teeth and are mounted on two or more parallel shafts. The design of spur gear is simple. Spur gears are also known as slow-speed gears due to their loud operation at high speed.

When the spur gears are engaged, the contact will be to the Entire width parallel to the Axis of the shaft due to this there will sudden application of load. Stress will be Impact and Detrimental (Dangerous) & Excessive sound when they are applied for high speeds so they are for Moderate speeds.
The spur gear can be internal or external. When the teeth are cut outside the cylinder. They are known as External gears and when teeth are cut on internal gears.

When External meshes they will Rotate in the opposite direction and when internal meshes they will Rotate in the same direction.

As we know there is no Axial thrust. There is one Advantage of that bearing work will be reduced. Due to the impact loading force is acting for very little time and due to this, there will be chances of fatigue failure.

Octaforce produces all types of gears in different materials including Mild Steel, Stainless Steel, Bronze, Brass, Cast iron with with accurate teeth finish. Octaforce Spur Gears in EN8, EN9, EN19, EN24 material and Octaforce Cast Steel Spur gears are widely used in heavy industries.

Octaforce Stainless steel Gear are used in under water applicaton and chemical industries. Octaforce Gears also come with different coatings as per customer requirement like annodized gears and phostphatic finishing.
