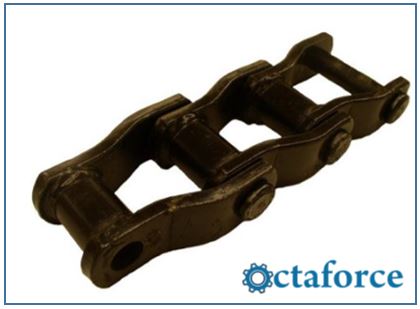

Octaforce is manufacturer and Exporter of Welded Steel Mill Chain (1) - Engineering Chain as part of Engineering Chains , Roller Chains , Conveyor Chains ,Specialty Chain , Corrosion Chains ,agricultural chain , Transmission Chain

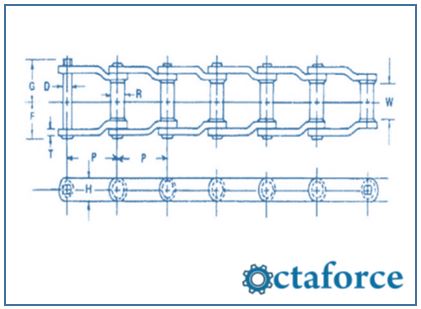

| OCTA Part No. | OCTA/WR 78 | OCTA/WR 82 | OCTA/WR 106 | OCTA/WR 110 | OCTA/WR 111 | OCTA/WR 124 | OCTA/WR 132 | OCTA/WR 150 | OCTA/WR 155 |
| Industry No. | WR 78 | WR 82 | WR 106 | WR 110 | WR 111 | WR 124 | WR 132 | WR 150 | WR 155 |
| Pitch (P) | 2.609 | 3.075 | 6.000 | 6.000 | 4.760 | 4.000 | 6.050 | 6.050 | 6.050 |
| Bushing Width (W) | 1.125 | 1.250 | 1.625 | 3.000 | 2.250 | 1.625 | 3.000 | 3.000 | 2.750 |
| Bushing Diameter (R) | 0.875 | 1.125 | 1.375 | 1.250 | 1.375 | 1.375 | 1.625 | 1.750 | 1.750 |
| Plate Height (H) | 1.120 | 1.250 | 1.500 | 1.500 | 1.500 | 1.500 | 2.000 | 2.500 | 2.500 |
| Plate Thickness (T) | 0.250 | 0.250 | 0.375 | 0.375 | 0.375 | 0.375 | 0.500 | 0.500 | 0.562 |
| Pin Diam (D) | 0.500 | 0.562 | 0.750 | 0.750 | 0.750 | 0.750 | 1.000 | 1.000 | 1.125 |
| Overall Width (F) | 1.500 | 1.623 | 2.204 | 2.156 | 2.467 | 2.219 | 3.097 | 3.062 | 3.227 |
| Overall Width (G) | 1.625 | 1.798 | 2.412 | 2.395 | 2.584 | 2.340 | 3.451 | 3.274 | 3.382 |
| Unit of Measure (Inches or Millimeters) | in | in | in | in | in | in | in | in | in |
| Average Tensile Strength Pin Heat Treated | 21,000 | 22,500 | 38,000 | 38,000 | 38,000 | 38,000 | 62,000 | 67,000 | 95,000 |
| Average Tensile Strength All Heat Treated | 24,000 | 29,500 | 50,500 | 50,500 | 50,500 | 50,500 | 76,000 | 90,000 | 102,000 |
| Average Weight Per Foot (Lbs./Ft.) | 4.40 | 5.50 | 7.00 | 6.65 | 6.30 | 8.50 | 13.30 | 15.70 | 18.10 |
Applications and Industry for Welded Steel Mill Chain (1)
Copying Machines • Dairy Machinery • Drying Machinery • Earth Moving Equipment • Extrusion Machines • Filtration Plants • Food & Drink Manufacture • Glass Manufacture • Health Care Equipment • Hydraulic Components • Ice-Cream Manufacture • In-flight Refueling • Ingot Casting & Scrap Metal Processing • Latex Machinery • Laundry Machinery • Lawnmower Manufacture • Mill Machinery • Mining • MOT Brake Testing Machinery
