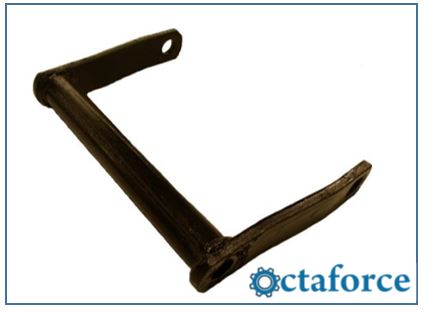

Octaforce is manufacturer and Exporter of Welded Drag Chain (1) - Engineering Chain as part of Engineering Chains , Roller Chains , Conveyor Chains ,Specialty Chain , Corrosion Chains ,agricultural chain , Transmission Chain
| OCTA Part No. | OCTA/WD 102 | OCTA/WD 104 | OCTA/WD 110 | OCTA/WD 112 | OCTA/WD 116 | OCTA/WD 480 |
| Industry No. | WD 102 | WD 104 | WD 110 | WD 112 | WD 116 | WD 480 |

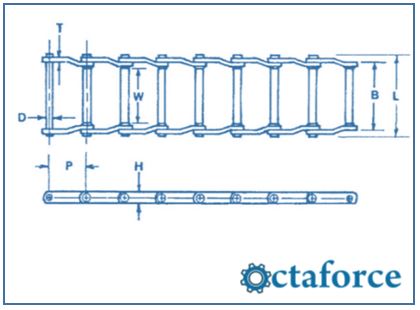

| Pitch (P) | 5.000 | 6.000 | 6.000 | 8.000 | 8.000 | 8.000 |
| Bushing Width (W) | 6.500 | 4.125 | 9.000 | 9.000 | 13.000 | 12.750 |
| Length of Bearing (B) | 7.750 | 5.375 | 10.375 | 10.375 | 14.125 | 12.750 |
| Plate Height (H) | 1.500 | 1.500 | 1.500 | 1.500 | 1.750 | 2.000 |
| Plate Thickness (T) | 0.375 | 0.375 | 0.375 | 0.375 | 0.375 | 0.500 |
| Pin Diam (D) | 0.750 | 0.750 | 0.750 | 0.750 | 0.750 | 0.875 |
| Overall Length Over Rivit (L) | 9.125 | 6.750 | 11.750 | 11.750 | 15.500 | 14.625 |
| Average Tensile Strength Pin Heat Treated | 38,250 | 38,250 | 38,250 | 38,250 | 55,000 | 70,000 |
| Average Tensile Strength All Heat Treated | 55,000 | 55,000 | 55,000 | 55,000 | 59,000 | 79,000 |
| Average Weight Per Foot (Lbs./Ft.) | 10.80 | 8.50 | 13.35 | 11.20 | 15.70 | 19.00 |
Applications and Industry for Welded Drag Chain (1)
Copying Machines • Dairy Machinery • Drying Machinery • Earth Moving Equipment • Extrusion Machines • Filtration Plants • Food & Drink Manufacture • Glass Manufacture • Health Care Equipment • Hydraulic Components • Ice-Cream Manufacture • In-flight Refueling • Ingot Casting & Scrap Metal Processing • Latex Machinery • Laundry Machinery • Lawnmower Manufacture • Mill Machinery • Mining • MOT Brake Testing Machinery
