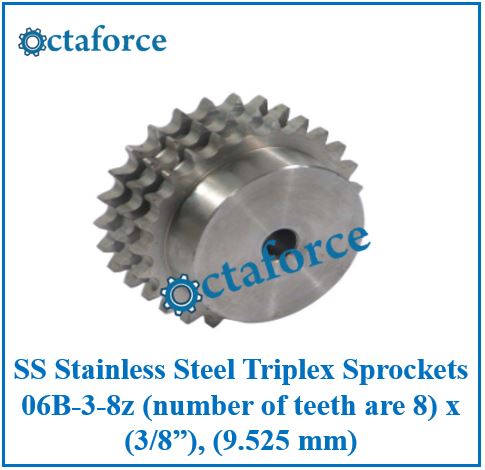

SS Stainless Steel Triplex Sprockets 06B-3-8z

Stainless Steel Triplex Sprockets 06B – High-Precision Industrial Power Transmission

Engineered for seamless triple-strand performance, our Stainless Steel Triplex Sprockets deliver maximum torque transmission and heavy-load capacity in high-load, high-sanitation, and corrosive environments. Precision-machined to BS/DIN 06B-3 standards, these triplex chain sprockets ensure optimal pitch alignment, minimal chain wear, and reduced mechanical friction across all three strands.

Material Grades & Performance Properties

• SS 304 (UNS S30400): Superior oxidation resistance and hygienic compliance—the standard choice for food processing, dairy, and pharmaceutical packaging lines.
• SS 316 (UNS S31600): Marine-grade stainless steel with added molybdenum for enhanced pitting and crevice corrosion resistance in chemical processing and acid environments.
• SS 321 (UNS S32100): Titanium-stabilized grade offering high tensile strength and resistance to carbide precipitation in high-temperature drive systems.
• Carbon & Alloy Steel Alternatives: Available in C45, EN8, EN19, and cast steel options with optional induction-hardened teeth (HRC 45-55) for extreme abrasive wear environments.

Target Applications

• Food & Beverage Conveyors: Heavy-duty hygienic washdown drive units, bottling plants, and high-capacity packaging lines.
• Chemical & Pharmaceutical Processing: Reactor drives, mixing tanks, and heavy-load cleanroom material handling.
• Marine & Offshore Systems: High-torque corrosion-resistant deck machinery, winches, and saltwater-exposed drives.
• Industrial Automation: Heavy-duty triple-strand roller chain drive systems and automated assembly lines.

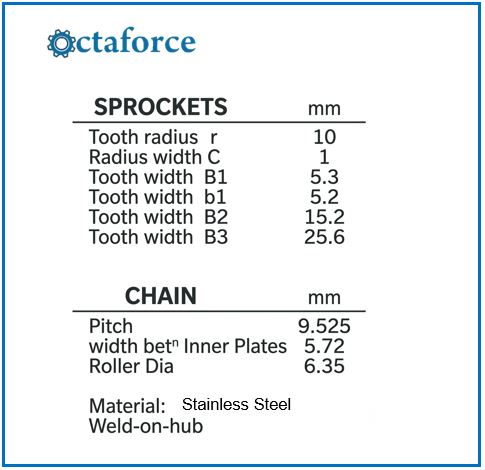

Specifications

• Type: Triplex (triple strand sprocket).
• Standard: BS/DIN 06B-3.
• Material Grades: SS 304, SS 316, SS 321, Mild Steel, EN-series.
• Hub Styles: A (flat), B (hub on one side), C (hub on both sides).
• Custom options: Quick detachable, taper bushed, split-type sprockets.
• Teeth: Precision-machined, with optional induction/flame hardening.

Key Advantages

• Optimized Tooth Profile: Precision CNC tooth cutting minimizes chain stress, friction losses, and operational noise across all three strands.
• Exceptional Corrosion & Heat Resistance: Built to withstand aggressive chemical washdowns, extreme moisture, and thermal shifts without galling or rusting.
• Maximum Power Density & Extended Life: Distributes severe torsional loads over three strands to reduce pitch elongation, drive system downtime, and chain wear.
• Custom Engineering: Tailored options available, including split-type designs, custom tooth counts (8T to 125T+), keyways, and special bore tolerances.

For more information on Stainless Steel Triplex Sprockets 06B-3-8z or to inquire about custom solutions, contact us at sales@octaforce.com
