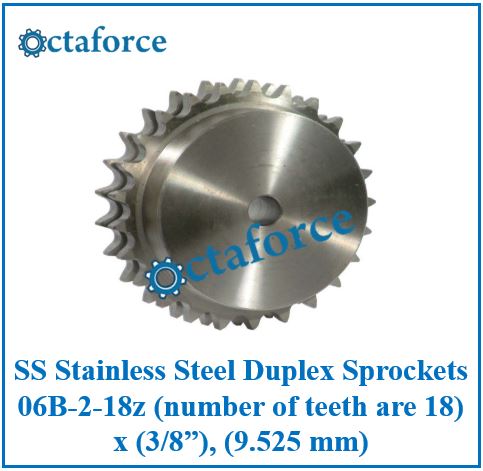

SS Stainless Steel Duplex Sprockets 06B-2-18z (number of teeth are 18) x (3/8”), (9.525 mm)
SS Stainless Steel Duplex Sprockets 06B-2-18z (number of teeth are 18) x (3/8”), (9.525 mm)
SS Stainless Steel Duplex Sprockets 06B-2-18z (number of teeth are 18) x (3/8”), (9.525 mm)

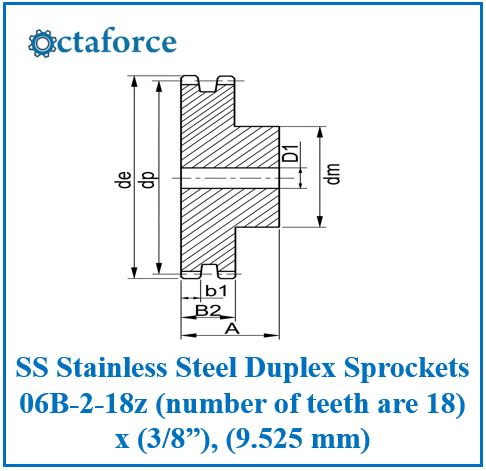

Technical Data



Part No. z
(Number of Teeth)		 de dp DUPLEX
dm D1 A
06B-2-18z 18 58.3 54.85 43 12 30

We are Distributors, Stockists and Dealers of Stainless Steel Duplex Sprockets 06B-2-18z

Stainless Steel Duplex Sprockets 06B – High-Precision Industrial Power Transmission

Engineered for seamless double-strand performance, our Stainless Steel Duplex Sprockets deliver dependable torque transmission in high-load, high-sanitation, and corrosive environments. Precision-machined to BS/DIN 06B-2 standards, these duplex chain sprockets ensure optimal pitch alignment, minimal chain wear, and reduced mechanical friction.

Material Grades & Performance Properties

  • SS 304 (UNS S30400): Superior oxidation resistance and hygienic compliance—the standard choice for food processing, dairy, and pharmaceutical packaging lines.
  • SS 316 (UNS S31600): Marine-grade stainless steel with added molybdenum for enhanced pitting and crevice corrosion resistance in chemical processing and acid environments.
  • SS 321 (UNS S32100): Titanium-stabilized grade offering high tensile strength and resistance to carbide precipitation in high-temperature drive systems.
  • Carbon & Alloy Steel Alternatives: Available in C45, EN8, EN19, and cast steel options with optional induction-hardened teeth (HRC 45-55) for extreme abrasive wear environments.

Target Applications

  • Food & Beverage Conveyors: Hygienic washdown drive units, bottling plants, and packaging lines.
  • Chemical & Pharmaceutical Processing: Reactor drives, mixing tanks, and cleanroom material handling.
  • Marine & Offshore Systems: Corrosion-resistant deck machinery, winches, and saltwater-exposed drives.
  • Industrial Automation: High-torque double-strand roller chain drive systems and automated assembly lines.

Specifications

  • Type: Duplex (double strand sprocket).
  • Material Grades: SS 304, SS 316, SS 321, Mild Steel, EN-series.
  • Hub Styles: A (flat), B (hub on one side), C (hub on both sides).
  • Custom options: Quick detachable, taper bushed, split-type sprockets.
  • Teeth: Precision-machined, with optional induction/flame hardening.

Key Advantages

  • Optimized Tooth Profile: Precision CNC tooth cutting minimizes chain stress, friction losses, and operational noise.
  • Exceptional Corrosion & Heat Resistance: Built to withstand aggressive chemical washdowns, extreme moisture, and thermal shifts without galling or rusting.
  • Extended Service Life: High fatigue resistance reduces pitch elongation and drive system downtime.
  • Custom Engineering: Tailored options available, including split-type designs, custom tooth counts (8T to 125T+), keyways, and special bore tolerances.

For more information on Stainless Steel Duplex Sprockets 06B-2-18z or to inquire about custom solutions, contact us at sales@octaforce.com
