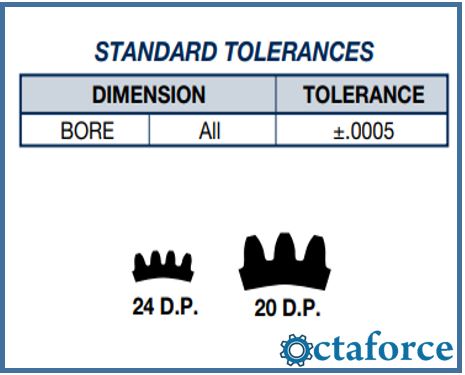

Spur Gears 24 and 20 Diametral Pitch (Steel)
ALL DIMENSIONS IN INCHES
ORDER BY CATALOG NUMBER OR ITEM CODE
| No. of Teeth | Pitch Dia. | Bore | Hub | Without Keyway or Setscrew | With Keyway & Setscrew | |||
| Dia. | Proj. | Catalog Number | Item Code | Catalog Number | Item Code | |||
| 24 Face= .250" Diametral Pitch Outside Dia. = Pitch Dia. + .083" Overall Length = .250" + Hub Proj. |
||||||||
| Steel | ||||||||
| 12 | .500 | .250 | - | - | S2412 | 09630 | - | - |
| 15 | .625 | - | - | S2415 | 09632 | - | - | |
| 16 | .667 | .3125 | - | - | S2416 | 09634 | - | - |
| 18 | .750 | - | - | S2418 | 09636 | - | - | |
| 21 | .875 | .375 | - | - | S2421 | 09638 | - | - |
| 24 | 1.000 | .500 | - | - | S2424 | 09640 | - | - |
| 30 | 1.250 | S2430 | 09642 | - | - | |||
| 36 | 1.500 | S2436 | 09644 | - | - | |||
| 42 | 1.750 | S2442 | 09646 | - | - | |||
| 48 | 2.000 | S2448 | 09648 | - | - | |||
| 60 | 2.500 | S2460 | 09650 | - | - | |||
| 72 | 3.000 | S2472 | 09652 | - | - | |||
| 12 | .500 | .250 | .36 | .31 | - | - | H2412 | 09596 |
| 14 | .583 | .46 | - | - | H2414 | 09598 | ||
| 15 | .625 | .50 | - | - | H2415 | 09600 | ||
| 16 | .667 | .3125 | .54 | .31 | - | - | H2416 | 09602 |
| 18 | .750 | .62 | - | - | H2418 | 09604 | ||
| 20 | .833 | .70 | - | - | H2420 | 09606 | ||
| 21 | .875 | .375 | .74 | .31 | - | - | H2421 | 09608 |
| 24 | 1.000 | .87 | .38 | - | - | H2424 | 09610 | |
| 30 | 1.250 | 1.00 | - | - | H2430 | 09612 | ||
| 36 | 1.500 | 1.12 | - | - | H2436 | 09614 | ||
| 48 | 1.750 | 1.12 | - | - | H2442 | 09616 | ||
| 48 | 2.000 | 1.25 | - | - | H2448 | 09618 | ||
| 60 | 2.500 | 1.25 | - | - | H2460 | 09620 | ||
| 72 | 3.000 | .500 | 1.38 | .50 | - | - | H2472 | 09622 |
| 96 | 4.000 | 2.00 | - | - | H2496 | 09624 | ||
| 120 | 5.000 | 2.25 | - | - | H24120 | 09626 | ||
| 144 | 6.000 | 2.25 | - | - | H24144 | 09628 | ||
| No. of Teeth | Pitch Dia. | Bore | Hub | Without Keyway or Setscrew | With Keyway & Setscrew | |||
| Dia. | Proj. | Catalog Number | Item Code | Catalog Number | Item Code | |||
| 20 Face= .375" Diametral Pitch Outside Dia. = Pitch Dia. + .100" Overall Length = .375" + Hub Proj. |
||||||||
| Steel | ||||||||
| 11 | .600 | .3125 | .46 | .38 | NA11B | 09662 | NA11B-5/16" | 46000 |
| 12 | .600 | .46 | NA12B | 09664 | NA12B-5/16" | 46001 | ||
| 13 | .650 | .50 | NA13B | 09666 | NA13B-5/16" | 46002 | ||
| 14 | .700 | .56 | NA14B | 09668 | NA14B-5/16" | 46003 | ||
| 15 | .750 | .375 | .60 | .38 | NA15B | 09670 | NA15B-3/8" | 46004 |
| 16 | .800 | .66 | NA16B | 09672 | NA16B-3/8" | 46005 | ||
| 18 | .900 | .74 | NA18B | 09674 | NA18B-3/8" | 46006 | ||
| 20 | 1.000 | .375 | .84 | .38 | NA20B | 09676 | NA20B-3/8" | 46007 |
| .500 | - | - | NA20B-1/2" | 46008 | ||||
| 22 | 1.100 | .375 | .82 | .38 | NA22B | 09678 | NA22B-3/8" | 46009 |
| .500 | - | - | NA22B-1/2" | 46010 | ||||
| 24 | 1.200 | .375 | .92 | .38 | NA24 | 09680 | NA24-3/8" | 46011 |
| .500 | - | - | NA24-1/2" | 46012 | ||||
| 25 | 1.250 | .375 | .97 | .38 | NA25B | 09682 | NA25B-3/8" | 46013 |
| .500 | - | - | NA25B-1/2" | 46014 | ||||
| 28 | 1.400 | .375 | 1.12 | .38 | NA28B | 09684 | NA28B-3/8" | 46015 |
| .500 | - | - | NA28B-1/2" | 46016 | ||||
| 30 | 1.500 | .375 | 1.22 | .38 | NA30B | 09686 | NA30B-3/8" | 46017 |
| .500 | - | - | NA30B-1/2" | 46018 | ||||
| 32 | 1.600 | .375 | 1.32 | .50 | NA32 | 09688 | NA32-3/8" | 46019 |
| .500 | - | - | NA32-1/2" | 46020 | ||||
| 35 | 1.750 | .375 | 1.47 | .50 | NA35 | 09690 | NA35-3/8" | 46021 |
| .500 | - | - | NA35-1/2" | 46022 | ||||
| 36 | 1.800 | .375 | 1.52 | .50 | NA36 | 09692 | NA36-3/8" | 46023 |
| .500 | - | - | NA36-1/2" | 46024 | ||||
| 40 | 2.000 | .375 | 1.72 | .50 | NA40 | 09694 | NA40-3/8" | 46025 |
| .500 | - | - | NA40-1/2" | 46026 | ||||
| .625 | - | - | NA40-5/8" | 46027 | ||||
| .750 | - | - | NA40-3/4" | 46028 | ||||
| 48 | 2.400 | .375 | 1.33 | .50 | NA48A | 10208 | - | - |
| 50 | 2.500 | 1.42 | NA50A | 10210 | - | - | ||
| 60 | 3.000 | 1.92 | NA60A | 10212 | - | - | ||
| 64 | 3.200 | 2.12 | NA64A | 10214 | - | - | ||
