Rotex Size GJS 125 Couplings
Rotex Size GJS 125 Couplings - Flexible couplings- Nodular Iron (GJS)
ROTEX® couplings are deigned to transmit torque between drive and driven components via curved jaw hubs and elastomeric elements commonly known as spiders. The combination between these components provides dampening and accommodation for misalignments. This product is available in a variety of metals, elastomers and mounting configurations to meet your specific needs. Ordering Guideline: There are three individual part numbers you will need for a complete coupler (i.e., 2 Hubs and 1 Spider). Please choose the hub sizes that match the criteria for your application. In addition to the hubs
Features of ROTEX® couplings
- High-Quality Spider Design
- Handles the Most Demanding Applications
- Allows for Different Bore Diameters
- No Backlash
- No Maintenance
- Requires Three Individual Part Numbers
- Easy Assembly
- Wide Variety of Sizes
For the entire range of Rotex Couplings Click Here https://octaforce.com/rotex-coupling/

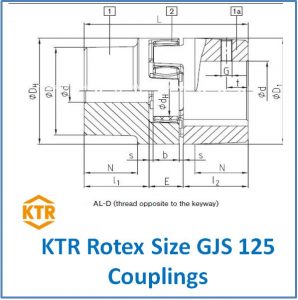

| ROTEX* GJS 125 Nodular Iron | |||||||||||||||||
| Size | Component |
Spider1' (component 2) Rated torque [Nm] |
Dimenstons [mm] |
||||||||||||||
| Finish bored | General | Setscrew | |||||||||||||||
| 92 ShA | 98 ShA | 64ShD |
L |
I1,I2 | E | b | s | DH | dH | D | N | G | i |
TA [Nm] |
|||
| 125 | 1 | 6650 | 10000 | 12500 |
60-145 |
340 | 140 | 60 | 46 | 7 | 290 | 147 | 230 | 112 | M16 | 40 | 80 |
