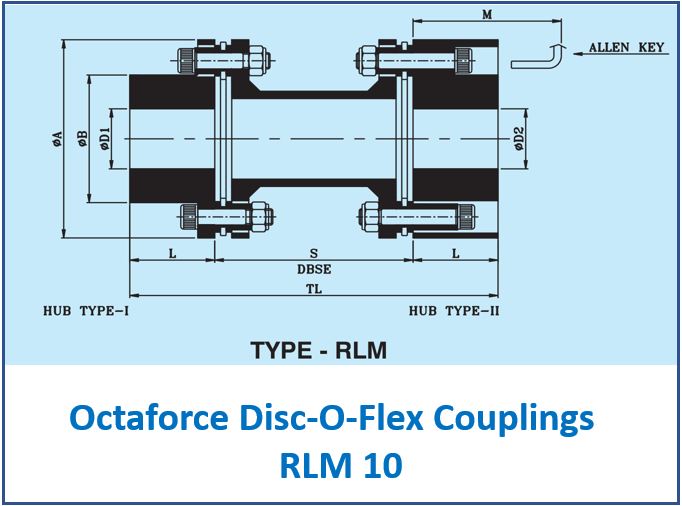

Octaforce Disc-O-Flex Couplings RLM 10

1. All dimensions are in mm, unless otherwise specified.
2. For vertical installation contact RATHI.
3. Special DBSE available on request.
4. Please specify type of hubs ( 1 / I , I/II, II/II)
5. Weight, M.I. & stiffness are at max. bores with min. std DBSE & with I/II hub combination.
6. Available for non-sparking applications on request.
7. Coupling with sizes higher than 2500 available on request.
8. ‘M’ is for hub type II only.
9. MAX. MIS-ALIGNMENTS ARE AS FOLLOWS. For RLM couplings.

AXIAL: FOR SIZE 10 TO 400: plus/minus 1 & FOR SIZE 520 ΤΟ 2500: ±2MM

ANGULAR/DISC PACK: 0.75°

RADIAL/PARALLEL: 0.013 MM

10. For RLMK series, hub combinations of I/I & I/II are only available.
11. For RLMK couplings, parallel misalignment is zero.

Octaforce Disc-O-Flex Couplings RLM 10  couplings are fully metallic, easy-to-install couplings with several key features:

1. Construction: They consist of two hubs, a center spacer, and stainless steel element blades, allowing for easy replacement without disturbing equipment.
2. Maintenance & Installation: They require no lubrication, have no wearing parts, and offer easy installation due to a ‘Drop Out’ spacer.
3. Performance of Octaforce Discoflex Couplings LM 10: These couplings accommodate various misalignments (angular, parallel, axial), are suitable for high-temperature applications, and offer high speed capability with dynamic balancing.
4. Durability & Options: Non-stainless steel parts are anticorrosive coated, and special options like customized spacer lengths and materials are available.
