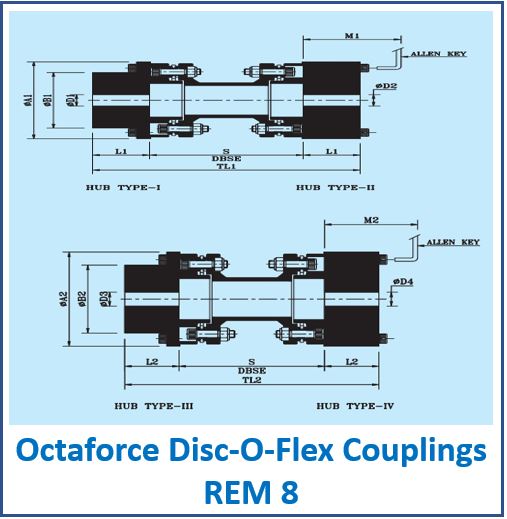

Octaforce Disc-O-Flex Couplings ODC 8 / REM 8
Octaforce Disc-O-Flex Couplings ODC 8 / REM 8

TECHNICAL DATA REM



Bore Weight in Kg M.I.(MR2) in Kg.m2
Min Max. Approx. Approx.
Coup.
Size		 Octaforce Part No. kW at
100
rpm		 Tor-
que
Nm		 Max.
Speed
RPM		 D1 &D2
(Type I/II)		  D3 &D4
(Type I/II)		 D1
Type I		 D2
Type II		 D3
Type III		 D4
Type IV		 Min
DBSE
‘S’		 A1 A2 B1 B2 L1 L2 STD
DBSE
‘S’		 TL
(STD
DBSE)		 TL2
(STD DBSE)		 M1 M2 Min
DBSE
‘S’		 Per Mtr.Extra
‘S’		 Min
DBSE
‘S’		 Per Mtr.Extra
‘S’		 Tors. Stiff.MNm/rad Approx.
8 ODC 8 1 96 7500 8 10 24 42 38 48 80 69.0 90 40 55 30 40 100 160,200, 240 180, 220, 260 80 90 2 1.32 0.0012 0.0002 0.018
  1. All dimensions are in mm, unless otherwise specified.
  2. For vertical installation contact OCTAFORCE.
  3. Special DBSE available on request.
  4. Please specify type of hubs ( 1 / I , I/II, II/II)
  5. Weight, M.I. & stiffness are at max. bores with min. std DBSE & with I/II hub combination.
  6. Available for non-sparking applications on request.
  7. Coupling with sizes higher than 2500 available on request.
  8. ‘M’ is for hub type II only.
  9. MAX. MIS-ALIGNMENTS ARE AS FOLLOWS. For ODC 8 / REM 8 couplings.

AXIAL: FOR SIZE 10 TO 400: plus/minus 1 & FOR SIZE 520 ΤΟ 2500: ±2MM

ANGULAR/DISC PACK: 0.75°

RADIAL/PARALLEL: 0.013 MM

  1. For REM / ODC series, hub combinations of I/I & I/II are only available.
  2. For REM / ODC couplings, parallel misalignment is zero.

Octaforce Disc-O-Flex Couplings ODC 8 / REM 8 couplings are fully metallic, easy-to-install couplings with several key features:

  1. Construction: They consist of two hubs, a center spacer, and stainless steel element blades, allowing for easy replacement without disturbing equipment.
  2. Maintenance & Installation: They require no lubrication, have no wearing parts, and offer easy installation due to a ‘Drop Out’ spacer.
  3. Performance of Octaforce Discoflex Couplings ODC 8 / REM 8: These couplings accommodate various misalignments (angular, parallel, axial), are suitable for high-temperature applications, and offer high speed capability with dynamic balancing.
  4. Durability & Options: Non-stainless steel parts are anticorrosive coated, and special options like customized spacer lengths and materials are available.
