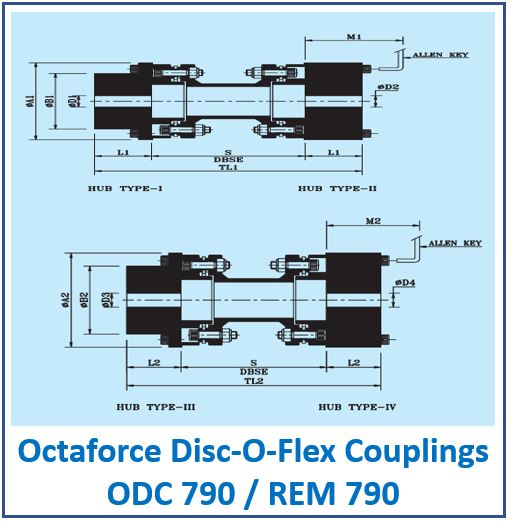

TECHNICAL DATA REM



Bore Weight in Kg M.I.(MR2) in Kg.m2
Min Max. Approx. Approx.
Coup.
 Size		 Octaforce Part No. kW at
 100
 rpm		 Tor-
 que
 Nm		 Max.
 Speed
 RPM		 D1 &D2
 (Type I/II)		  D3 &D4
 (Type I/II)		 D1
 Type I		 D2
 Type II		 D3
 Type III		 D4
 Type IV		 Min
 DBSE
 'S'		 A1 A2 B1 B2 L1 L2 STD
 DBSE
 'S'		 TL
 (STD
 DBSE)		 TL2
 (STD DBSE)		 M1 M2 Min
 DBSE
 'S'		 Per Mtr.Extra
 'S'		 Min
 DBSE
 'S'		 Per Mtr.Extra
 'S'		 Tors. Stiff.MNm/rad Approx.
790 ODC 790 74.2 7084 4000 55 65 127 155 140 178 180 225 250 181 206 95 105 370, 440 390, 460 160 170 61 21.72 0.4181 0.0561 1.649
  1. All dimensions are in mm, unless otherwise specified.
  2. For vertical installation contact OCTAFORCE.
  3. Special DBSE available on request.
  4. Please specify type of hubs ( 1 / I , I/II, II/II)
  5. Weight, M.I. & stiffness are at max. bores with min. std DBSE & with I/II hub combination.
  6. Available for non-sparking applications on request.
  7. Coupling with sizes higher than 2500 available on request.
  8. ‘M’ is for hub type II only.
  9. MAX. MIS-ALIGNMENTS ARE AS FOLLOWS. For ODC 790 / REM 790 couplings.

AXIAL: FOR SIZE 10 TO 400: plus/minus 1 & FOR SIZE 520 ΤΟ 2500: ±2MM

ANGULAR/DISC PACK: 0.75°

RADIAL/PARALLEL: 0.013 MM

  1. For REM / ODC series, hub combinations of I/I & I/II are only available.
  2. For REM / ODC couplings, parallel misalignment is zero.

Octaforce Disc-O-Flex Couplings ODC 790 / REM 790 couplings are fully metallic, easy-to-install couplings with several key features:

  1. Construction: They consist of two hubs, a center spacer, and stainless steel element blades, allowing for easy replacement without disturbing equipment.
  2. Maintenance & Installation: They require no lubrication, have no wearing parts, and offer easy installation due to a ‘Drop Out’ spacer.
  3. Performance of Octaforce Discoflex Couplings ODC 790 / REM 790 : These couplings accommodate various misalignments (angular, parallel, axial), are suitable for high-temperature applications, and offer high speed capability with dynamic balancing.
  4. Durability & Options: Non-stainless steel parts are anticorrosive coated, and special options like customized spacer lengths and materials are available.
