TECHNICAL DATA REM
| Bore | Weight in Kg | M.I.(MR2) in Kg.m2 | |||||||||||||||||||||||||
| Min | Max. | Approx. | Approx. | ||||||||||||||||||||||||
| Coup. Size |
Octaforce Part No. | kW at 100 rpm |
Tor- que Nm |
Max. Speed RPM |
D1 &D2 (Type I/II) |
D3 &D4 (Type I/II) |
D1 Type I |
D2 Type II |
D3 Type III |
D4 Type IV |
Min DBSE 'S' |
A1 | A2 | B1 | B2 | L1 | L2 | STD DBSE 'S' |
TL (STD DBSE) |
TL2 (STD DBSE) |
M1 | M2 | Min DBSE 'S' |
Per Mtr.Extra 'S' |
Min DBSE 'S' |
Per Mtr.Extra 'S' |
Tors. Stiff.MNm/rad Approx. |
| 1880 | ODC 1880 | 196 | 18714 | 3600 | 75 | 80 | 170 | 212 | 190 | 255 | 225 | 300 | 375 | 248 | 280 | 130 | 145 | 250 | 510 | 540 | 215 | 245 | 136 | 42.79 | 1.774 | 0.1666 | 4.271 |
- All dimensions are in mm, unless otherwise specified.
- For vertical installation contact OCTAFORCE.
- Special DBSE available on request.
- Please specify type of hubs ( 1 / I , I/II, II/II)
- Weight, M.I. & stiffness are at max. bores with min. std DBSE & with I/II hub combination.
- Available for non-sparking applications on request.
- Coupling with sizes higher than 2500 available on request.
- ‘M’ is for hub type II only.

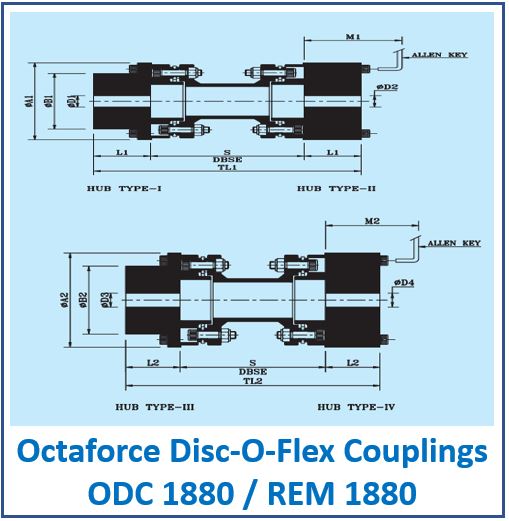

- MAX. MIS-ALIGNMENTS ARE AS FOLLOWS. For ODC 1880 / REM 1880 couplings.
AXIAL: FOR SIZE 10 TO 400: plus/minus 1 & FOR SIZE 520 ΤΟ 2500: ±2MM
ANGULAR/DISC PACK: 0.75°
RADIAL/PARALLEL: 0.013 MM
- For REM / ODC series, hub combinations of I/I & I/II are only available.
- For REM / ODC couplings, parallel misalignment is zero.
Octaforce Disc-O-Flex Couplings ODC 1880 / REM 1880 couplings are fully metallic, easy-to-install couplings with several key features:
- Construction: They consist of two hubs, a center spacer, and stainless steel element blades, allowing for easy replacement without disturbing equipment.
- Maintenance & Installation: They require no lubrication, have no wearing parts, and offer easy installation due to a ‘Drop Out’ spacer.
- Performance of Octaforce Discoflex Couplings ODC 1880 / REM 1880 : These couplings accommodate various misalignments (angular, parallel, axial), are suitable for high-temperature applications, and offer high speed capability with dynamic balancing.
- Durability & Options: Non-stainless steel parts are anticorrosive coated, and special options like customized spacer lengths and materials are available.
