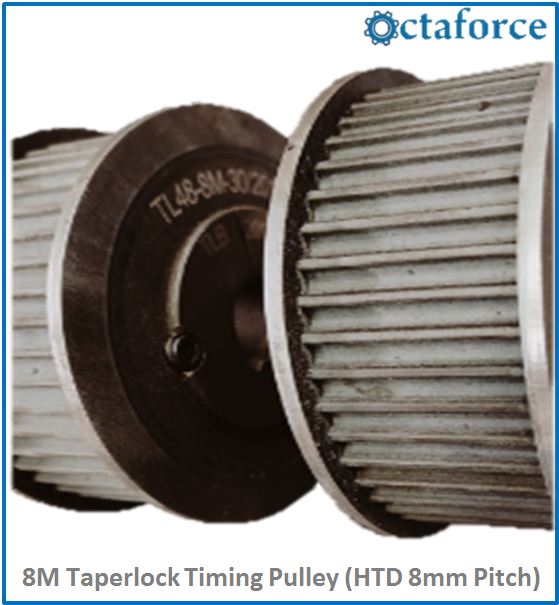

8M Taperlock Timing Pulley

8M Taperlock Pulleys Octaforce

8M Taperlock Pulleys Octaforce are designed for tooth shape HTD 8mm and are manufactured in a wide range of Face (Width) such as 8M Taperlock Pulleys Octaforce for 20 mm belt width, 8M pitch for 30mm belt width, 8M pitch for 50mm belt width, 8M pitch for 85mm belt width. The taper lock bush (like 2012, 2517, 3020, 4040) in the 8M Taperlock Pulleys Octaforce is used to mount the shaft to the pulley and can be replaced on wear and tear without the need to replace the entire timing pulley. We also Manufacture these 8M Timing Belt Pulleys with QD (Quick detachable) bush and Power Lock Keyless Bush as per ISO 9000 standards.Octaforce HTD 8M Timing Pulleys are Manufactured in Cast Iron material (GG25 grade), Stainless Steel 304, Stainless Steel 316 material, and also in Alloy steel as per customers requirement and application.

Applications of 8mm pitch Timing Pulleys.

We have a wide range of 8mm pitch Timing Belt Pulleys readily in stock with us.
Our manufactured 8 M Timing Pulleys are used in various industries such as Oil and Gas industries, Paper Industries, Chemical Industries, Pharmaceutical industries, Printing industries and various other industries.
We are always available for any inquiries to serve our customers well at sales@octaforce.com and octaforce8@gmail.com

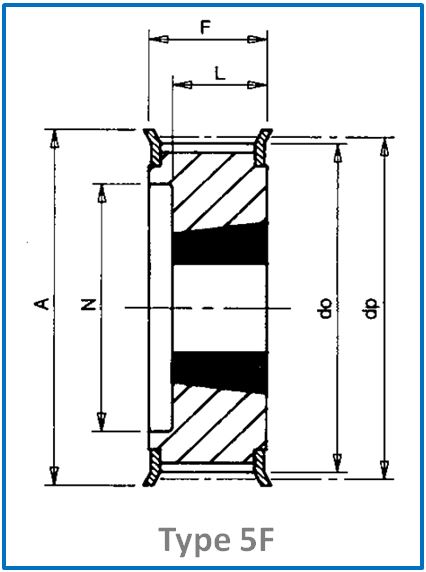

Type 5F

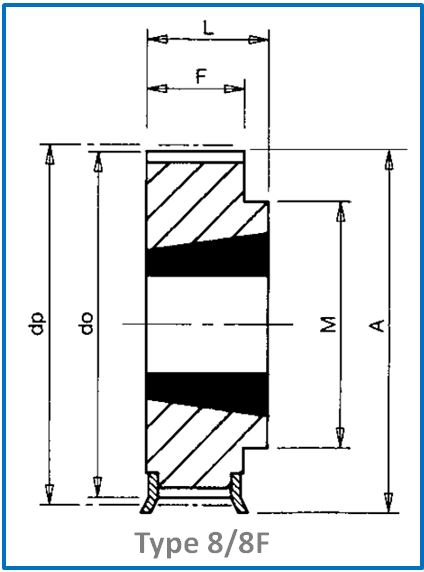

Type 8-8F.

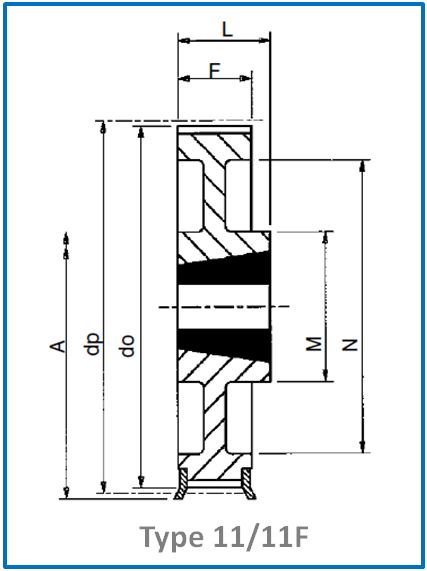

Type 11-11F
Octaforce
Part No.		 Industry Part No. No. Teeth Z Pulley Type Pitch Circle Dia. dp Taper Bush Ref. Max. Bore d Outside Diameter do Flange Diameter A Pulley Width F Bore Length L Hub Diameter M Rim Diameter N Approx Weight kg
8mm Pitch Pulleys for 20mm Wide Belt Ref. 8M20
TBP 22 8M 20 22-8M-20 22 5F 56.02 1108 28 54.7 60 28 22 – 37 0.26
TBP 24 8M 20 24-8M-20 24 5F 61.12 1108 28 59.8 66 28 22 – 44 0.30
TBP 26 8M 20 26-8M-20 26 5F 66.21 1108 28 64.9 70 28 22 – 45 0.36
TBP 28 8M 20 28-8M-20 28 5F 71.30 1108 28 70.1 75 28 22 – 50 0.44
TBP 30 8M 20 30-8M-20 30 5F 76.39 1108 28 75.1 83 28 22 – 58 0.53
TBP 32 8M 20 32-8M-20 32 5F 81.49 1610 42 80.2 87 28 25 – 63 0.42
TBP 34 8M 20 34-8M-20 34 5F 86.58 1610 42 85.2 91 28 25 – 64 0.55
TBP 36 8M 20 36-8M-20 36 5F 91.67 1610 42 90.3 97 28 25 – 68 0.68
TBP 38 8M 20 38-8M-20 38 5F 96.77 1610 42 95.4 102 28 25 – 72 0.80
TBP 40 8M 20 40-8M-20 40 5F 101.86 1610 42 100.5 106 28 25 – 76 1.00
TBP 44 8M 20 44-8M-20 44 8F 112.05 2012 50 110.7 120 28 32 93 – 1.20
TBP 48 8M 20 48-8M-20 48 8F 122.23 2012 50 120.9 128 28 32 96 – 1.60
TBP 56 8M 20 56-8M-20 56 8F 142.60 2012 50 141.2 150 28 32 110 – 2.40
TBP 64 8M 20 64-8M-20 64 11F 162.97 2012 50 161.6 168 28 32 110 137 2.70
TBP 72 8M 20 72-8M-20 72 11F 183.35 2012 50 182.0 192 28 32 110 158 3.30
TBP 80 8M 20 80-8M-20 80 11 203.72 2012 50 202.4 – 28 32 110 180 3.50
TBP 90 8M 20 90-8M-20 90 11 229.18 2012 50 227.8 – 28 32 110 204 3.65



Type 5F
Type 8-8F.

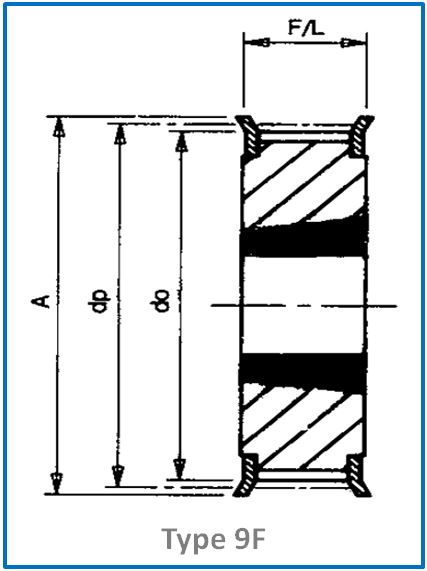

Type 9F
Type 11-11F

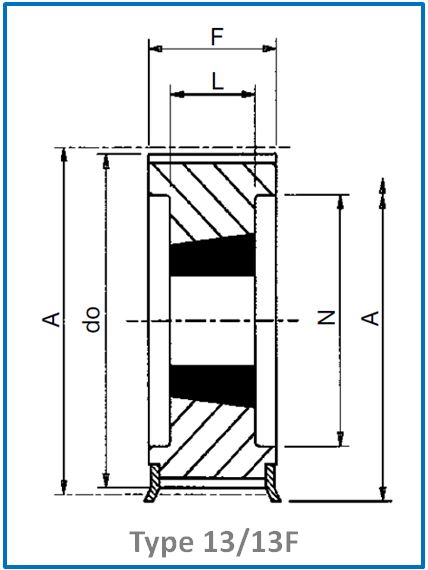

Type 13-13F
Octaforce
Part No.		 Industry Part No. No. Teeth Z Pulley Type Pitch Circle Dia. dp Taper Bush Ref. Max. Bore d Outside Diameter do Flange Diameter A Pulley Width F Bore Length L Hub Diameter M Rim Diameter N Approx Weight kg
8mm Pitch Pulleys for 30mm Wide Belt Ref. 8M30
TBP 22 8M 30 22-8M-30 22 5F 56.02 1108 28 54.7 60 38 22 – 37 0.32
TBP 24 8M 30 24-8M-30 24 5F 61.12 1108 28 59.8 66 38 22 – 44 0.38
TBP 26 8M 30 26-8M-30 26 5F 66.21 1108 28 64.9 70 38 22 – 44 0.45
TBP 28 8M 30 28-8M-30 28 5F 71.30 1210 32 70.1 75 38 25 – 50 0.50
TBP 30 8M 30 30-8M-30 30 9F 76.39 1615 42 75.1 83 38 38 – – 0.55
TBP 32 8M 30 32-8M-30 32 9F 81.49 1615 42 80.2 87 38 38 – – 0.59
TBP 34 8M 30 34-8M-30 34 9F 86.58 1615 42 85.2 91 38 38 – – 0.77
TBP 36 8M 30 36-8M-30 36 9F 91.67 1615 42 90.3 97 38 38 – – 0.96
TBP 38 8M 30 38-8M-30 38 9F 96.77 1615 42 95.4 102 38 38 – – 1.15
TBP 40 8M 30 40-8M-30 40 9F 101.86 1615 42 100.5 106 38 38 – – 1.34
TBP 44 8M 30 44-8M-30 44 13F 112.05 2012 50 110.7 120 38 32 – 86 1.33
TBP 48 8M 30 48-8M-30 48 13F 122.23 2012 50 120.9 128 38 32 – 90 1.78
TBP 56 8M 30 56-8M-30 56 13F 142.60 2012 50 141.2 150 38 32 – 110 3.76
TBP 64 8M 30 64-8M-30 64 8F 162.97 2517 60 161.6 168 38 45 125 – 4.20
TBP 72 8M 30 72-8M-30 72 11F 183.35 2517 60 182.0 192 38 45 125 158 4.30
TBP 80 8M 30 80-8M-30 80 11 203.72 2517 60 202.4 – 38 45 125 180 4.60
TBP 90 8M 30 90-8M-30 90 11 229.18 2517 60 227.8 – 38 45 125 204 5.00
TBP 112 8M 30 112-8M-30 112 11 285.21 2517 60 283.8 – 38 45 125 254 6.20
TBP 144 8M 30 144-8M-30 144 11 366.69 2517 60 365.3 – 38 45 125 336 9.00
Type 5F

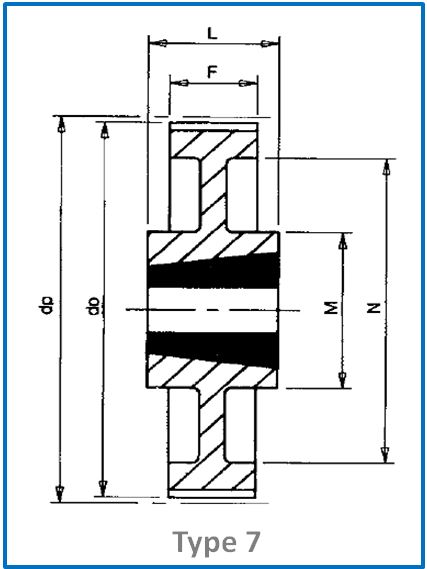

Type 7

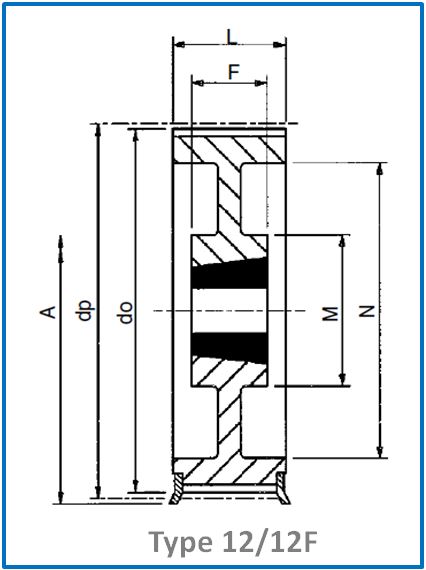

Type 12-12F
Type 13-13F
Octaforce
Part No.		 Industry Part No. No. Teeth Z Pulley Type Pitch Circle Dia. dp Taper Bush Ref. Max. Bore d Outside Diameter do Flange Diameter A Pulley Width F Bore Length L Hub Diameter M Rim Diameter N Approx Weight kg
8mm Pitch Pulleys for 50mm Wide Belt Ref. 8M50
TBP 28 8M 50 28-8M-50 28 13F 71.30 1210 32 70.1 75 60 25 – 50 0.60
TBP 30 8M 50 30-8M-50 30 5F 76.39 1615 42 75.1 83 60 38 – 58 0.65
TBP 32 8M 50 32-8M-50 32 5F 81.49 1615 42 80.2 87 60 38 – 62 0.82
TBP 34 8M 50 34-8M-50 34 5F 86.58 1615 42 85.2 91 60 38 – 65 1.06
TBP 36 8M 50 36-8M-50 36 5F 91.67 1615 42 90.3 97 60 38 – 68 1.30
TBP 38 8M 50 38-8M-50 38 5F 96.77 1615 42 95.4 102 60 38 – 72 1.60
TBP 40 8M 50 40-8M-50 40 13F 101.86 2012 50 100.5 106 60 32 – 82 1.71
TBP 44 8M 50 44-8M-50 44 13F 112.05 2012 50 110.7 120 60 32 – 91 1.78
TBP 48 8M 50 48-8M-50 48 13F 122.23 2012 50 120.9 128 60 32 – 95 2.30
TBP 56 8M 50 56-8M-50 56 13F 142.60 2517 60 141.2 150 60 45 – 116 3.40
TBP 64 8M 50 64-8M-50 64 13F 162.97 2517 60 161.6 168 60 45 – 137 5.00
TBP 72 8M 50 72-8M-50 72 12F 183.35 2517 60 182.0 192 60 45 125 158 6.70
TBP 80 8M 50 80-8M-50 80 13 203.72 3020 75 202.4 – 60 51 – 180 8.80
TBP 90 8M 50 90-8M-50 90 12 229.18 3020 75 227.8 – 60 51 170 204 10.00
TBP 112 8M 50 112-8M-50 112 12 285.21 3020 75 283.8 – 60 51 170 260 12.00
TBP 144 8M 50 144-8M-50 144 12 366.69 3020 75 365.3 – 60 51 170 341 15.20
TBP 168 8M 50 168-8M-50 168 7 427.81 3525 90 426.4 – 60 65 198 402 17.50
TBP 192 8M 50 192-8M-50 192 7 488.92 3525 90 487.6 – 60 65 198 460 24.00
Type 12-12F
Type 13-13F
Octaforce
Part No.		 Industry Part No. No. Teeth Z Pulley Type Pitch Circle Dia. dp Taper Bush Ref. Max. Bore d Outside Diameter do Flange Diameter A Pulley Width F Bore Length L Hub Diameter M Rim Diameter N Approx Weight kg
8mm Pitch Pulleys for 85mm Wide Belt Ref. 8M85
TBP 34 8M 85 34-8M-85 34 13F 86.58 1615 42 85.2 91 95 38 – 65 1.43
TBP 36 8M 85 36-8M-85 36 13F 91.67 1615 42 90.3 97 95 38 – 68 1.87
TBP 38 8M 85 38-8M-85 38 13F 96.77 1615 42 95.4 102 95 38 – 72 2.20
TBP 40 8M 85 40-8M-85 40 13F 101.86 2012 50 100.5 106 95 32 – 82 1.80
TBP 44 8M 85 44-8M-85 44 13F 112.05 2012 50 110.7 120 95 32 – 91 2.30
TBP 48 8M 85 48-8M-85 48 13F 122.23 2517 60 120.9 128 95 45 – 100 2.66
TBP 56 8M 85 56-8M-85 56 13F 142.60 2517 60 141.2 150 95 45 – 117 4.45
TBP 64 8M 85 64-8M-85 64 13F 162.97 2517 60 161.6 168 95 45 – 137 6.20
TBP 72 8M 85 72-8M-85 72 13F 183.35 3020 75 182.0 192 95 51 – 158 8.00
TBP 80 8M 85 80-8M-85 80 13 203.72 3020 75 202.4 – 95 51 – 180 10.00
TBP 90 8M 85 90-8M-85 90 12 229.18 3020 75 227.8 – 95 51 170 204 10.80
TBP 112 8M 85 112-8M-85 112 12 285.21 3020 75 283.8 – 95 51 170 260 15.00
TBP 144 8M 85 144-8M-85 144 12 366.69 3525 90 365.3 – 95 65 198 336 20.00
TBP 168 8M 85 168-8M-85 168 12 427.81 3525 90 426.4 – 95 65 198 395 22.00
TBP 192 8M 85 192-8M-85 192 12 488.92 3525 90 487.6 – 95 65 198 455 26.00
