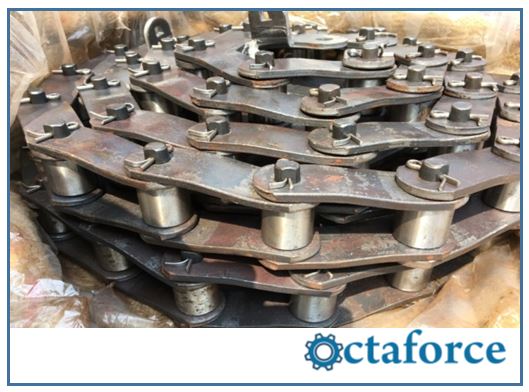

Octaforce 578 Chain
Octaforce OC 578 chains are widely used in Bucket Elevators, Agricultural Industry, Steel Industry, Cement industry as well as chemical industry.
Our OC 578 Chains offer great strength and flexibility for Conveyors with high tensile strength for the safety of man force working around the Conveyor. We are a leading Manufacturer and Exporter of these 578 Bucket Elevator Chain.

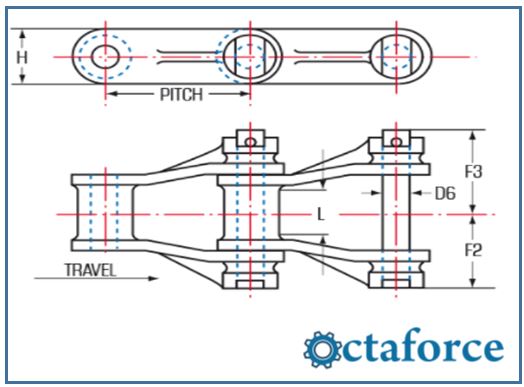

| Octaforce 578 Chain | ||||||||||
| Chains Number |
Average Pitch |
Width | Side Bars Heights |
Pin Diameter |
Sprocket Face |
Number of Links In 10 Ft | Breaking Load |
Average Weight |
||
| P | F2 | F3 | H | D6 | L | |||||
| Inches | lbs | lbs/ft | ||||||||
| OC 578 | 2.63 | 1.56 | 1.69 | 1.06 | 0.44 | 1.00 | 46 | 15000 | 4.0 | |

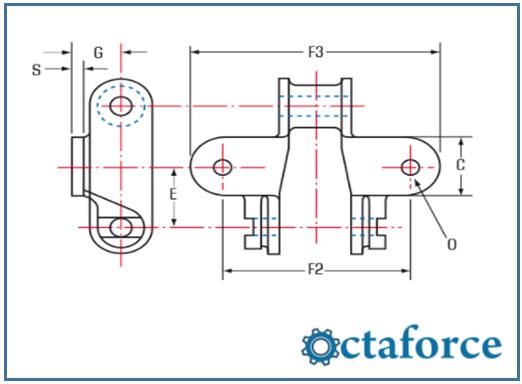

| Octaforce 578 Chain with K1 Attachment | ||||||||
| Chains Number |
F2 | F3 | E | G | O | C | F | S |
| Inches | ||||||||
| OC 578 | 4.00 | 5.13 | 0.94 | 0.75 | 0.38 | 2.06 | 1.00 | 0.25 |

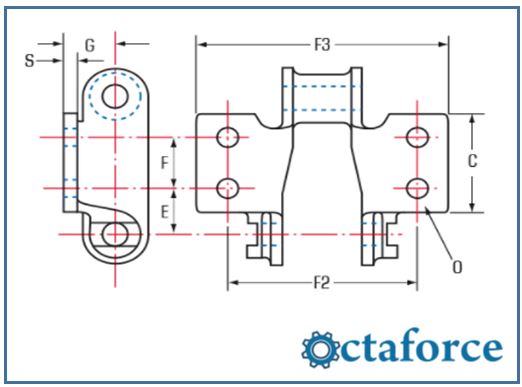

| Octaforce 578 Chain with K2 attachment | |||||||
| Chains Number |
F2 | F3 | E | G | O | C | S |
| Inches | |||||||
| OC 578 | 3.75 | 5.00 | 1.38 | 0.75 | 0.38 | 1.19 | 0.31 |
