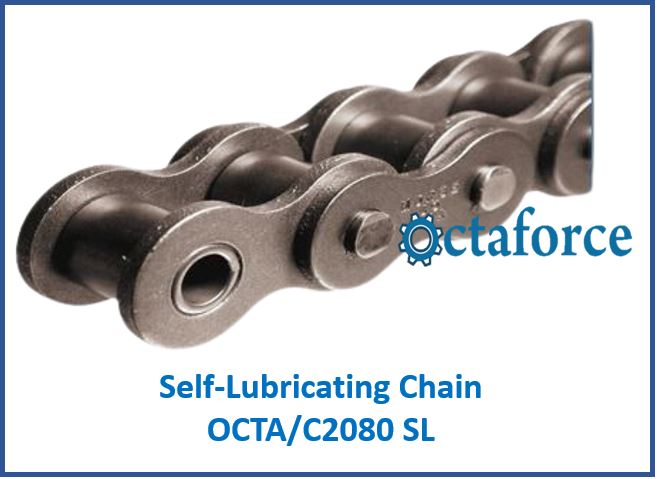

OCTA/C2080 SL Self-Lubricating Chain
OCTA/C2080 SL Self-Lubricating Chain

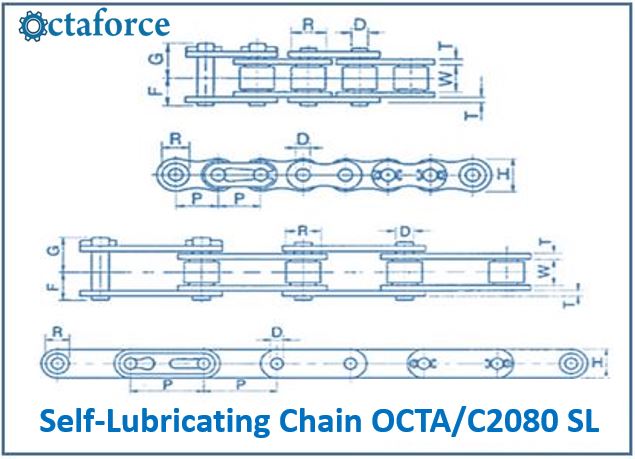

OCTA  Part No. Industry No. Pitch (P) Bushing Width (W) Bushing Diameter (R) Plate Height (H) Plate Thickness (T) Pin Diam (D) Overall Width (F) Overall Width (G) Unit of Measure (Inches or Millimeters) Average Tensile Strength (Lbs.) Average Weight Per Foot (Lbs./Ft.)
OCTA/C2080 SL C2080 SL 2.000 0.625 0.625 0.935 0.125 0.312 0.636 0.75 in 11450 1.600

We are Distributors, Stockists and Dealers of OCTA/C2080 SL Self-Lubricating Chain

You can send inquiry for size OCTA/C2080 SL Self-Lubricating Chain by clicking here.

OCTA/C2080  SL Self-Lubricating Chain is a reliable and durable power transmission solution designed for various industrial applications. With its extended pitch design, this chain offers smooth and efficient operation, making it ideal for conveying and transporting systems.

Key Features:

  • Extended pitch design for smooth operation
  • High-quality materials for durability
  • Suitable for conveying and transporting systems
  • Available in various sizes and configurations

Materials of Construction (MOC):

We offer OCTA/C2080 SL Self-Lubricating Chain in a range of materials to suit different application requirements:

  • Carbon Steel: Standard material for general-purpose applications.
  • Stainless Steel Grade 304 C2080 SL Chain: For corrosion resistance in food, pharmaceutical, and chemical industries.
  • Stainless Steel Grade 316 C2080 SL Chain: For high-corrosion environments, such as marine and coastal applications.
  • Stainless Steel Grade 310 HT C2080 SL Chain: High-temperature applications up to 1100°C.
  • Delrin Material C2080 SL Chain: For low-friction and wear-resistant applications.

Applications:

  • Conveying systems
  • Transporting systems
  • Industrial machinery
  • Agricultural equipment
  • Food processing
  • Pharmaceutical industry
  • Chemical processing

Specifications:

  • Pitch: Double pitch
  • Type: Roller chain
  • Size: C2080 SL
  • Materials: Carbon Steel, Stainless Steel (304, 316, 310 HT), Delrin
  • Available in various sizes and configurations

Benefits:

  • Smooth and efficient operation
  • High durability and resistance to wear
  • Corrosion-resistant options for harsh environments
  • Customizable to suit specific application needs

For more information on OCTA/C2080 SL Self-Lubricating Chain or to inquire about custom solutions, contact us at sales@octaforce.com
