OCTA

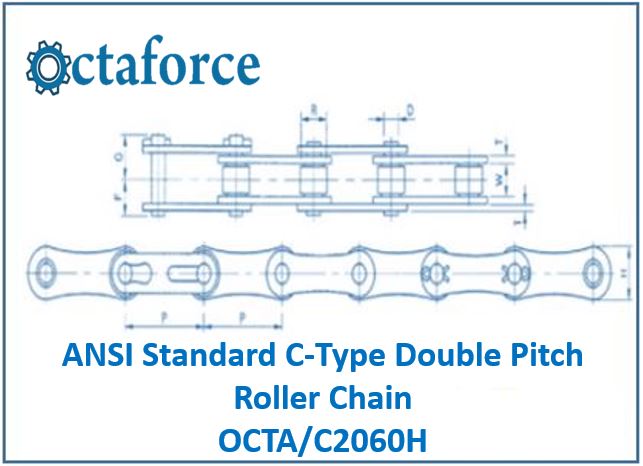

Part No.		 Industry No. Pitch (P) Roller Width (W) Roller Diameter (R ) Plate Height (H) Plate Thickness (T) Pin Diam (D) Overall Width (F) Overall Width (G) Unit of Measure (Inches or Millimetres) Average Tensile Strength (Lbs.) Average Weight Per Foot (Lbs./Ft.)
OCTA/C2060 C2060 1.500 0.500 0.469 0.712 0.094 0.235 0.501 0.601 in 9,259 0.759

We are Distributors, Stockists and Dealers of OCTA/C2060H ANSI Standard C-Type Double Pitch Roller Chain

You can send inquiry for size OCTA/C2060H ANSI Standard C-Type Double Pitch Roller Chain by clicking here.

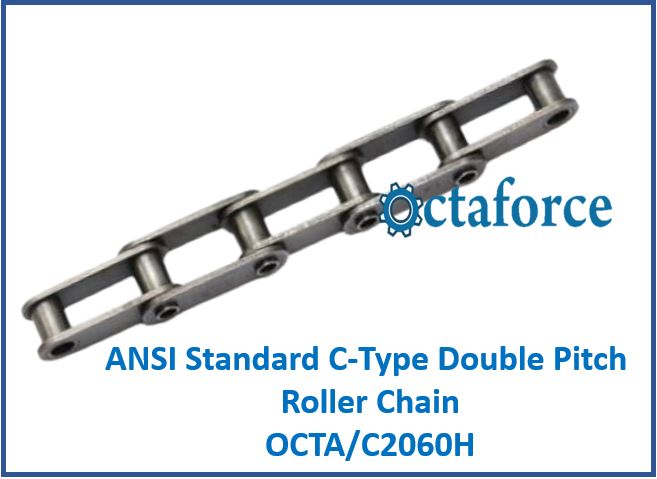

The Double Pitch Roller Chain Octa/C2060H is a reliable and durable power transmission solution designed for various industrial applications. With its extended pitch design, this chain offers smooth and efficient operation, making it ideal for conveying and transporting systems.

Key Features:

  • Extended pitch design for smooth operation
  • High-quality materials for durability
  • Suitable for conveying and transporting systems
  • Available in various sizes and configurations

Materials of Construction (MOC):

We offer the Double Pitch Roller Chain Octa/C2060H in a range of materials to suit different application requirements:

  • Carbon Steel: Standard material for general-purpose applications.
  • Stainless Steel Grade 304 C2060H Chain: For corrosion resistance in food, pharmaceutical, and chemical industries.
  • Stainless Steel Grade 316 C2060H Chain: For high-corrosion environments, such as marine and coastal applications.
  • Stainless Steel Grade 310 HT C2060H Chain: High-temperature applications up to 1100°C.
  • Delrin Material C2060H Chain: For low-friction and wear-resistant applications.

Applications:

  • Conveying systems
  • Transporting systems
  • Industrial machinery
  • Agricultural equipment
  • Food processing
  • Pharmaceutical industry
  • Chemical processing

Specifications:

  • Pitch: Double pitch
  • Type: Roller chain
  • Size: C2060H
  • Materials: Carbon Steel, Stainless Steel (304, 316, 310 HT), Delrin
  • Available in various sizes and configurations

Benefits:

  • Smooth and efficient operation
  • High durability and resistance to wear
  • Corrosion-resistant options for harsh environments
  • Customizable to suit specific application needs

For more information on Double Pitch Roller Chain C2060H or to inquire about custom solutions, contact us at sales@octaforce.com
