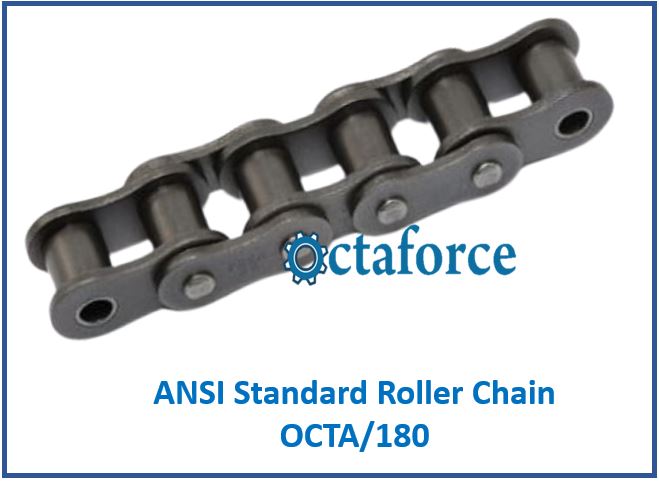

OCTA/180 ANSI Standard Roller Chain
OCTA/180 ANSI Standard Roller Chain
OCTA/180 ANSI Standard Roller Chain



OCTA Part No. . Industry No. Pitch (P) Roller Width (W) Roller Diameter (R) Plate Height (H) Plate Thickness (T) Pin Diameter (D) Overall Width (F) Overall Width (G) Unit of Measure (Inches or Millimeters) Average Tensile Strength (Lbs.) Average Weight Per Foot (Lbs./Ft.)
OCTA/180 180 2.25 1.406 1.406 2.137 0.281 0.687 1.443 1.659 in 84216 8.514

We are Distributors, Stockists and Dealers of OCTA/180 ANSI Standard Roller Chain

You can send inquiry for size OCTA/180 ANSI Standard Roller Chain by clicking here.

OCTA/180 ANSI Standard Roller Chain is a reliable and durable power transmission solution designed for various industrial applications. With its extended pitch design, this chain offers smooth and efficient operation, making it ideal for conveying and transporting systems.

Key Features:

  • Extended pitch design for smooth operation
  • High-quality materials for durability
  • Suitable for conveying and transporting systems
  • Available in various sizes and configurations

Materials of Construction (MOC):

We offer OCTA/180 ANSI Standard Roller Chain in a range of materials to suit different application requirements:

  • Carbon Steel: Standard material for general-purpose applications.
  • Stainless Steel Grade 304 180 Chain: For corrosion resistance in food, pharmaceutical, and chemical industries.
  • Stainless Steel Grade 316 180 Chain: For high-corrosion environments, such as marine and coastal applications.
  • Stainless Steel Grade 310 HT 180 Chain: High-temperature applications up to 1100°C.
  • Delrin Material 180 Chain: For low-friction and wear-resistant applications.

Applications:

  • Conveying systems
  • Transporting systems
  • Industrial machinery
  • Agricultural equipment
  • Food processing
  • Pharmaceutical industry
  • Chemical processing

Specifications:

  • Pitch: Double pitch
  • Type: Roller chain
  • Size: 180
  • Materials: Carbon Steel, Stainless Steel (304, 316, 310 HT), Delrin
  • Available in various sizes and configurations

Benefits:

  • Smooth and efficient operation
  • High durability and resistance to wear
  • Corrosion-resistant options for harsh environments
  • Customizable to suit specific application needs

For more information on OCTA/180 ANSI Standard Roller Chain or to inquire about custom solutions, contact us at sales@octaforce.com
