| OCTA Part No. |

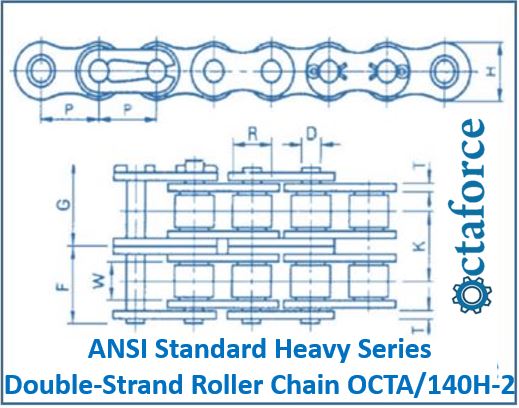

Industry No. | Pitch (P) | Roller Width (W) | Roller Diameter (R ) | Plate Height (H) | Plate Thickness (T) | Pin Diam (D) | Overall Width (F) | Overall Width (G) | Unit of Measure (Inches or Millimetres) | Transverse pitch (K) | Average Tensile Strength (Lbs.) | Average Weight Per Foot (Lbs./Ft.) |
| OCTA/140H-2 | 140H-2 | 1.750 | 1.000 | 1.000 | 1.662 | 0.250 | 0.500 | 2.172 | 2.369 | in | 2.055 | 1,09,790 | 10.886 |

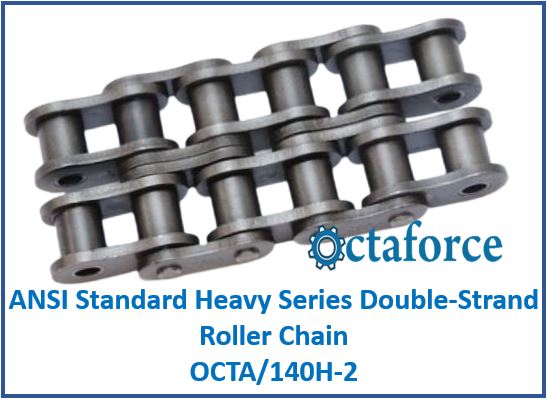

We are Distributors, Stockists and Dealers of OCTA/140H-2 ANSI Standard Heavy Series Double-Strand Roller Chain
You can send inquiry for size OCTA/140H-2 ANSI Standard Heavy Series Double-Strand Roller Chain by clicking here.
OCTA/140H-2 ANSI Standard Heavy Series Double-Strand Roller Chain is a reliable and durable power transmission solution designed for various industrial applications. With its extended pitch design, this chain offers smooth and efficient operation, making it ideal for conveying and transporting systems.
Key Features:
- Extended pitch design for smooth operation
- High-quality materials for durability
- Suitable for conveying and transporting systems
- Available in various sizes and configurations
Materials of Construction (MOC):
We offer OCTA/140H-2 ANSI Standard Heavy Series Double-Strand Roller Chain in a range of materials to suit different application requirements:
- Carbon Steel: Standard material for general-purpose applications.
- Stainless Steel Grade 304 140H-2 Chain: For corrosion resistance in food, pharmaceutical, and chemical industries.
- Stainless Steel Grade 316 140H-2 Chain: For high-corrosion environments, such as marine and coastal applications.
- Stainless Steel Grade 310 HT 140H-2 Chain: High-temperature applications up to 1100°C.
- Delrin Material 140H-2Chain: For low-friction and wear-resistant applications.
Applications:
- Conveying systems
- Transporting systems
- Industrial machinery
- Agricultural equipment
- Food processing
- Pharmaceutical industry
- Chemical processing
Specifications:
- Pitch: Double pitch
- Type: Roller chain
- Size: 140H-2
- Materials: Carbon Steel, Stainless Steel (304, 316, 310 HT), Delrin
- Available in various sizes and configurations
Benefits:
- Smooth and efficient operation
- High durability and resistance to wear
- Corrosion-resistant options for harsh environments
- Customizable to suit specific application needs
For more information on OCTA/140H-2 ANSI Standard Heavy Series Double-Strand Roller Chain or to inquire about custom solutions, contact us at sales@octaforce.com
