Octaforce  is manufacturer and Exporter of Non-Standard Roller Chain as part of Transmission Chain, Attachment Chain ,Corrosion Resistant Standard Roller Chain Engineering Chain , Roller Chains , Conveyor Chains ,Specialty Chain, Leaf Chain,  Conveyor Corrosion Resistant Chain, Agricultural Chain.

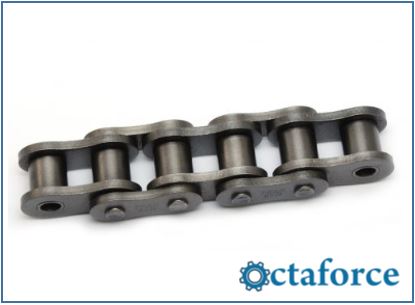

Non-Standard Roller Chain - Transmission Chain

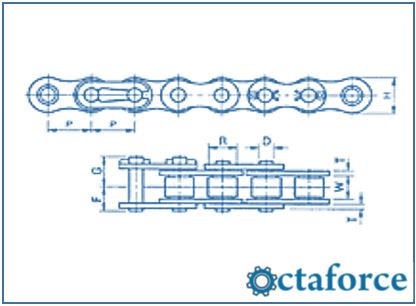

Non-Standard Roller Chains - Transmission Chain
OCTA  Part No. OCTA/408 OCTA/410 OCTA/415 OCTA/415H OCTA/420 OCTA/423 OCTA/428 OCTA/428H OCTA/520 OCTA/525
Industry No. 408 410 415 415H 420 423 428 428H 520 525
Pitch (P) 0.500 0.500 0.500 0.500 0.500 0.500 0.500 0.500 0.625 0.625
Roller Width (W) 0.094 0.125 0.188 0.188 0.250 0.250 0.312 0.313 0.250 0.312
Roller Diameter (R) 0.306 0.306 0.306 0.306 0.306 0.335 0.335 0.335 0.400 0.400
Plate Height (H) 0.390 0.390 0.390 0.469 0.469 0.469 0.469 0.476 0.585 0.585
Plate Thickness (T) 0.039 0.039 0.039 0.060 0.060 0.060 0.060 0.071 0.079 0.079
Pin Diam (D) 0.142 0.142 0.142 0.156 0.156 0.176 0.176 0.176 0.200 0.200
Overall Width (F) 0.149 0.184 0.216 0.263 0.288 0.288 0.324 0.350 0.344 0.376
Overall Width (G) 0.190 0.233 0.262 0.301 0.344 0.338 0.371 0.392 0.394 0.425
Unit of Measure (Inches or Millimetres) in in in in in in in in in in
Average Tensile Strength (Lbs.) 1,900 1,900 2,100 3,700 3,700 4,600 4,600 5,300 6,100 6,100
Average Weight Per Foot (Lbs./Ft.) 0.18 0.19 0.24 0.33 0.38 0.42 0.44 0.55 0.64 0.68



Applications and Industry for Non-Standard Roller Chain

Nuclear Power • Off Road Vehicles • Oil Industry • Packaging Machines • Paper & Card Making • Paper Shredders • Plastic Machinery • Potato Grading Machinery • Power Generation • Printing Machines • Quarry Plant • Road Making & Plant Machinery • Robotic Systems • Roof Tile Manufacture • Ship's Engines • Silkscreen Machinery • Ski-Lifts • Soot Blowers • Steel Making • Straddle Carriers • Sugar Beet Machines • Sun-Blinds • Telecommunications  • Textile Machinery • Timber and Woodworking Machines • Tin Printer Ovens • Tobacco/Cigarette Machinery • Tunneling Machines • T.V. and Audio Equipment
