Octaforce  is manufacturer and Exporter of Nickel Plated Single Strand Simplex Roller Chain as part of Transmission Chain, Attachment Chain ,Corrosion Resistant Standard Roller Chain Engineering Chain , Roller Chains , Conveyor Chains ,Specialty Chain, Leaf Chain,  Conveyor Corrosion Resistant Chain, Agricultural Chain.

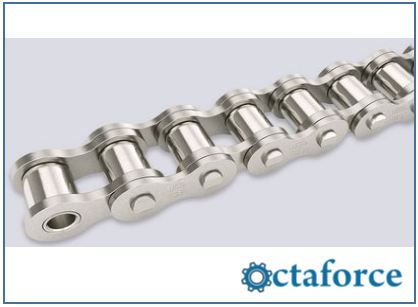

Nickel Plated Single Strand Roller Chain - Transmission Chain

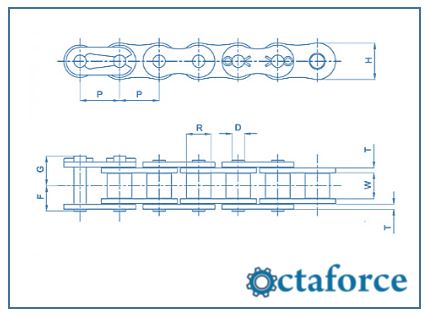

Nickel Plated Single Strand Roller Chains - Transmission Chain
OCTA  Part No. OCTA/25 NP OCTA/35 NP OCTA/410 NP OCTA/41 NP OCTA/40 NP OCTA/50 NP OCTA/60 NP OCTA/80 NP OCTA/100 NP
Industry No. 25 NP 35 NP 410 NP 41 NP 40 NP 50 NP 60 NP 80 NP 100 NP
Pitch (P) 0.250 0.375 0.500 0.500 0.500 0.625 0.750 1.000 1.250
Roller Width (W) 0.125 0.188 0.125 0.250 0.312 0.375 0.500 0.625 0.750
Roller Diameter (R) 0.130 0.200 0.306 0.306 0.312 0.400 0.469 0.625 0.750
Plate Height (H) 0.228 0.356 0.390 0.390 0.475 0.594 0.673 0.950 1.187
Plate Thickness (T) 0.030 0.050 0.039 0.050 0.060 0.080 0.094 0.125 0.156
Pin Diam (D) 0.091 0.142 0.142 0.142 0.157 0.200 0.234 0.313 0.376
Overall Width (F) 0.154 0.232 0.184 0.263 0.324 0.400 0.500 0.650 0.781
Overall Width (G) 0.185 0.277 0.233 0.334 0.406 0.488 0.549 0.803 0.950
Unit of Measure (Inches or Millimeters) in in in in in in in in in
Average Tensile Strength (Lbs.) 1,036 2,469 1,900 2,866 4,188 6,834 8,500 17,636 25,353
Average Weight Per Foot (Lbs./Ft.) 0.087 0.215 0.190 0.276 0.417 0.679 0.974 1.714 2.654

Applications and Industry for Nickel Plated Single Strand Simplex Roller Chain

Nuclear Power • Off Road Vehicles • Oil Industry • Packaging Machines • Paper & Card Making • Paper Shredders • Plastic Machinery • Potato Grading Machinery • Power Generation • Printing Machines • Quarry Plant • Road Making & Plant Machinery • Robotic Systems • Roof Tile Manufacture • Ship's Engines • Silkscreen Machinery • Ski-Lifts • Soot Blowers • Steel Making • Straddle Carriers • Sugar Beet Machines • Sun-Blinds • Telecommunications  • Textile Machinery • Timber and Woodworking Machines • Tin Printer Ovens • Tobacco/Cigarette Machinery • Tunneling Machines • T.V. and Audio Equipment
