Octaforce  is manufacturer and Exporter of 304 Series Stainless Steel Single Strand Roller Chain  as part of Transmission Chain, Attachment Chain ,Corrosion Resistant Standard Roller Chain Engineering Chain , Roller Chains , Conveyor Chains ,Specialty Chain, Leaf Chain,  Conveyor Corrosion Resistant Chain, Agricultural Chain.

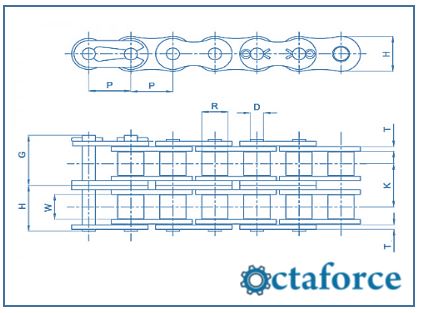

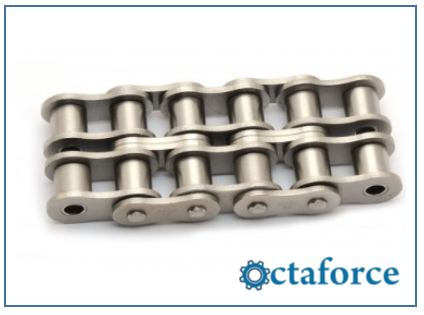

Nickel Plated Double Strand Duplex Roller Chain - Transmission Chain
Nickel Plated Double Strand Duplex Roller Chains - Transmission Chain
OCTA  Part No. OCTA/35-2NP OCTA/40-2NP OCTA/50-2NP OCTA/60-2NP OCTA/80-2NP OCTA/100-2NP
Industry No. 35-2NP 40-2NP 50-2NP 60-2NP 80-2NP 100-2NP
Pitch (P) 0.375 0.500 0.625 0.750 1.000 1.250
Roller Width (W) 0.188 0.312 0.375 0.500 0.625 0.750
Roller Diameter (R) 0.200 0.312 0.400 0.469 0.625 0.750
Plate Height (H) 0.356 0.475 0.594 0.673 0.950 1.187
Plate Thickness (T) 0.050 0.060 0.080 0.094 0.125 0.156
Pin Diam (D) 0.142 0.157 0.200 0.234 0.313 0.376
Overall Width (F) 0.441 0.608 0.755 0.945 1.224 1.502
Overall Width (G) 0.469 0.690 0.850 1.016 1.386 1.655
Unit of Measure (Inches or Millimetres) in in in in in in
Transverse pitch (K) 0.399 0.566 0.713 0.897 1.153 1.408
Average Tensile Strength (Lbs.) 4,938 8,377 13,668 19,400 35,273 50,706
Average Weight Per Foot (Lbs./Ft.) 0.423 0.820 1.344 1.929 3.393 5.282

Applications and Industry for Nickel Plated Double Strand Duplex Roller Chain

Abattoirs • Air Conditioning • Aircraft - Civil & Military • Bakery Machines • Battery Manufacturing • Brewing • Canning • Carpet Machines •Chart Tables/Marine • Chocolate Manufacturing • Concrete Moulding Equipment • Copying Machines • Dairy Machinery • Drying Machinery • Earth Moving Equipment • Extrusion Machines • Filtration Plants • Food & Drink Manufacture • Glass Manufacture • Health Care Equipment • Hydraulic Components• Ice-Cream Manufacture • In-flight Refueling • Ingot Casting & Scrap Metal Processing • Latex Machinery • Laundry Machinery • Lawnmower Manufacture • Mill Machinery • Mining • MOT Brake Testing Machinery
