Octaforce is manufacturer and Exporter of ISO British Standard Triple Strand Chain as part of Roller Chains , Engineering Chain , Conveyor Chains ,Specialty Chain, Corrosion Resistant Standard Roller Chain, Attachment Chain, Leaf Chain, Agricultural chain , Transmission Chain, Conveyor Corrosion Resistant Chain

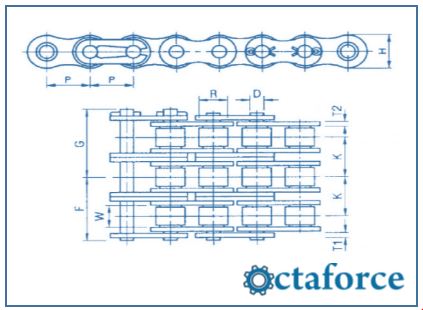

| OCTA Part No. | OCTA06B-3 | OCTA08B-3 | OCTA10B-3 | OCTA12B-3 | OCTA16B-3 | OCTA20B-3 | OCTA24B-3 |
| Industry No. | 06B-3* | 08B-3 | 10B-3 | 12B-3 | 16B-3 | 20B-3 | 24B-3 |
| Pitch (P) | 0.375 | 0.500 | 0.625 | 0.750 | 1.000 | 1.250 | 1.500 |
| Roller Width (W) | 0.225 | 0.305 | 0.380 | 0.460 | 0.670 | 0.770 | 1.000 |
| Roller Diameter (R) | 0.250 | 0.335 | 0.400 | 0.475 | 0.625 | 0.750 | 1.000 |
| Plate Height (H) | 0.325 | 0.465 | 0.580 | 0.635 | 0.830 | 1.040 | 1.315 |
| Plate Thickness (T1) | 0.039 | 0.059 | 0.067 | 0.073 | 0.125 | 0.125 | 0.189 |
| Plate Thickness (T2) | 0.050 | 0.062 | 0.067 | 0.073 | 0.157 | 0.176 | 0.236 |
| Pin Diam (D) | 0.129 | 0.175 | 0.200 | 0.225 | 0.326 | 0.401 | 0.576 |
| Overall Width (F) | 0.647 | 0.890 | 1.046 | 1.220 | 1.971 | 2.228 | 2.967 |
| Overall Width (G) | 0.696 | 0.949 | 1.106 | 1.288 | 2.054 | 2.409 | 3.176 |
| Unit of Measure (Inches or Millimeters) | in | in | in | in | in | in | in |
| Transverse pitch (K) | 0.403 | 0.548 | 0.653 | 0.766 | 1.255 | 1.435 | 1.904 |
| Average Tensile Strength (Lbs.) | 6,283 | 11,244 | 17,990 | 21,693 | 51,324 | 69,446 | 119,049 |
| Average Weight Per Foot (Lbs./Ft.) | 0.739 | 1.310 | 1.814 | 2.412 | 5.295 | 7.224 | 13.937 |
Applications and Industry for ISO British Standard Triple Strand Chain
Ingot Casting & Scrap Metal Processing • Latex Machinery • Laundry Machinery • Lawnmower Manufacture • Mill Machinery • Mining • MOT Brake Testing Machinery • Nuclear Power • Off Road Vehicles • Oil Industry • Packaging Machines • Paper & Card Making • Paper Shredders • Plastic Machinery • Potato Grading Machinery • Power Generation • Printing Machines • Quarry Plant • Road Making & Plant Machinery • Robotic Systems • Roof Tile Manufacture • Ship's Engines • Silkscreen Machinery • Ski-Lifts • Soot Blowers • Steel Making • Straddle Carriers • Sugar Beet Machines • Sun-Blinds • Telecommunications • Textile Machinery • Timber and Woodworking Machines
