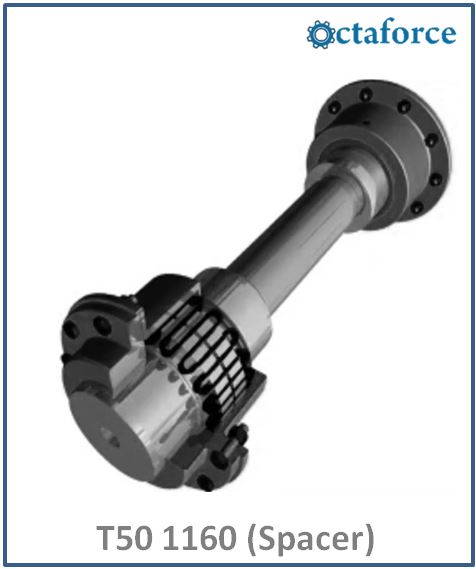

Grid Resilient T50 1160 Coupling
Part Number available with us for Taper Grid Resilient Coupling T501160 Spacer hub T101160 T101160 T501160 T501160 T501160 T501160 T501160 T501160 T501160 T501160 T501160 T0 1160
| Size | Torque Rating (Nm) | Max Bore | Min Bore (mm) | Cplg Weight (Kg) | Lube Weight (Kg) | Dimensions (Millimeters) | ||||||||||||
| Flanged Hub | Pilot Hub | A | BE Min |
C | D | DD | F | J | M | P | SB | SD | GAP | |||||
| T50 1160 | 55,900 | 240 | 200.0 | 121 | 381.00 | 2.8100 | 548.6 | 587 | 198.1 | 304.8 | 304.8 | 442.0 | 189.4 | 287.0 | 111.9 | 200.0 | 203.2 | 6 |
Octaforce Steel Flex T501160 Couplings- Grid Spring Type Flexible Coupling
We deal in Standard T501160 Type Flexible coupling . The T501160 Type coupling consists of 2 standard Hubs with Horizontal/Vertical Grid Spring over the Hubs, Spacer and 2 Flanges (Steel) covers .
Standard T50Type Grid coupling with removable Hubs, Spacer, Grid and Covers
Easy Maintenance
Fail Safe - keeps working if Grid(Spring) fails.
T501160 Type Taper Grid Coupling is available in Stock in our India warehouse . We have Taper Grid coupling and its Spare Grids in Stock as well. We keep almost all Grid Resilient Couplings sizes for Ready Dispatch. Contact us for Pricing or Standard Pricelist.
Click here to request a Taper Grid Resilient Flexible Coupling Catalogue PDF
Why T501160 Spacer Type Couplings?
The T50 type Grid Spring Spacer coupling , with a torque of 55900 nm. The Maximum bore capacity for shaft for T50 1160 Grid Coupling is 240 mm. Total Diameter of T50 1160 Grid Resilient Coupling is 548.6 mm.
The entire range of T10 Grid Couplings Click Here https://octaforce.com/taper-grid-coupling/
For more information send us an inquiry at sales@octaforce.com and octaforce8@gmail.com
