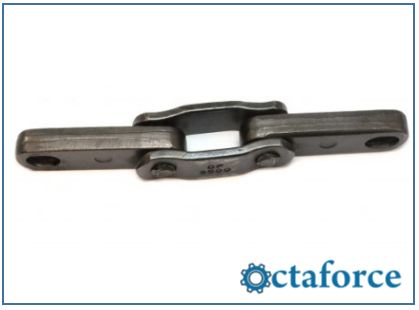

Octaforce is manufacturer and Exporter of Engineering Conveyor Chain (2) - Engineering Chain as part of Engineering Chains , Roller Chains , Conveyor Chains ,Specialty Chain , Corrosion Chains ,agricultural chain , Transmission Chain

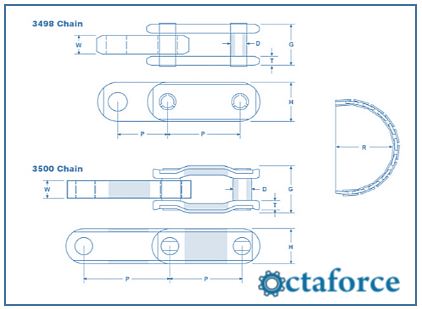

| OCTA Part No. | OCTA/3498 | OCTA/3500 |
| Industry No. | 3498 | 3500 |
| Pitch Inner Link (P) | 1.750 | 2.500 |
| Pitch Outer Link (P) | 2.500 | 3.000 |
| Chain Width Overall (G) | 1.480 | 1.500 |
| Chain Width Inside Link W | 0.640 | 0.624 |
| Pin Diameter (D) | 0.625 | 0.561 |
| Plate Thickness (T) | 0.310 | 0.250 |
| Plate Height (H) | 1.400 | 1.250 |
| Min Flex Radius (R) | 20 | 20 |
| Avg.Tensile Strength (R) | 50,000 | 48,000 |
| Weight Per Foot (Lbs.) | 3.900 | 3.290 |
| Unit of Measure (Inches or Millimeters) | in | in |
Applications and Industry for Engineering Conveyor Chain (2)
Abattoirs • Air Conditioning • Aircraft - Civil & Military • Bakery Machines • Battery Manufacturing • Brewing • Canning • Carpet Machines • Chart Tables/Marine • Chocolate Manufacturing • Concrete Moulding Equipment • Copying Machines • Dairy Machinery • Drying Machinery • Earth Moving Equipment • Extrusion Machines • Filtration Plants • Food & Drink Manufacture • Glass Manufacture • Health Care Equipment • Hydraulic Components • Ice-Cream Manufacture • In-flight Refueling • Ingot Casting & Scrap Metal Processing
