Diamond Chain No. 48B-3 ,48b

Diamond British Standard Roller Chain 48B-3 , D480 , 76.20mm conforming to IS 606, BS228, DIN 8187. These British Standard Chains come with One ,Two and Three Strands .Please refer below for Complete Datasheet and Specification for 48B-3.

Diamond Chain No. 48B-3 Diamond Chain No. D480 ,48BDiamond Chain No. 48B-3.

We are Diamond roller chain Distributors, Stockists and Dealers. We can provide you Diamond chain with Octaforce sprocket at Best price. So you can buy complete Roller Chain and Sprockets from us .

You can send inquiry for size 48b by clicking here   for Diamond Roller Chain Prices

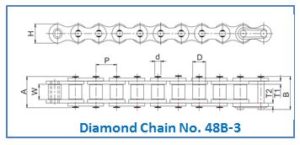

Intl Ref No. 48B-3
Daimond Chain No. D480
Number of Strands 03
Pitch (P) 76.20
Width Between Inner Plates (W) Min 45.72
Roller Diameter (D) Max 48.26
Bearing Pin Diameter (d) Max 29.24
Plate Height IP (H) Max 63.80
Plate Thickness  IP (T1) 11.60
Plate Thickness IP(T2) 9.60
Width Over Bearing Pin (A) Max 281.00
Width Over Joint Fastener (B) Max 291.00
Transverse Pitch (P1) 91.21
Average Weight Per Meter (kgs) 72.67
Tensite Strength (kgf) Min 152940
