Diamond Chain No. 40B-1 ,40b

Diamond British Standard Roller Chain 40B-1 , D400 , 63.50mm conforming to IS 606, BS228, DIN 8187. These British Standard Chains come with One ,Two and Three Strands .Please refer below for Complete Datasheet and Specification for 40B-1.

Diamond Chain No. 40B-1 Diamond Chain No. D400 ,40B

We are Diamond roller chain Distributors, Stockists and Dealers. We can provide you Diamond chain with Octaforce sprocket at Best price. So you can buy complete Roller Chain and Sprockets from us .

You can send inquiry for size 40b by clicking here   for Diamond Roller Chain Prices

Intl Ref No. 40B-1
Daimond Chain No. D400
Number of Strands 01

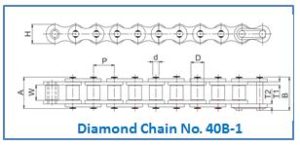

Pitch (P) 63.50
Width Between Inner Plates (W) Min 38.10
Roller Diameter (D) Max 39.37
Bearing Pin Diameter (d) Max 22.89
Plate Height IP (H) Max 52.90
Plate Thickness  IP (T1) 8.60
Plate Thickness IP(T2) 7.90
Width Over Bearing Pin (A) Max 82.60
Width Over Joint Fastener (B) Max 92.60
Transverse Pitch (P1) 72.29
Average Weight Per Meter (kgs) 15.53
Tensite Strength (kgf) Min 36200
