Diamond Chain No. 24B-2 ,24b

Diamond British Standard Roller Chain 24B-2 , D240 , 38.10mm conforming to IS 606, BS228, DIN 8187. These British Standard Chains come with One ,Two and Three Strands .Please refer below for Complete Datasheet and Specification for 24B-2.

Diamond Chain No. 24B-2 Diamond Chain No. D240 ,24BDiamond Chain No. 24B-2.

We are Diamond roller chain Distributors, Stockists and Dealers. We can provide you Diamond chain with Octaforce sprocket at Best price. So you can buy complete Roller Chain and Sprockets from us .

You can send inquiry for size 24b by clicking here   for Diamond Roller Chain Prices

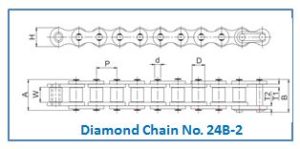

Intl Ref No. 24B-2
Daimond Chain No. D240
Number of Strands 02
Pitch (P) 38.10
Width Between Inner Plates (W) Min 25.40
Roller Diameter (D) Max 25.40
Bearing Pin Diameter (d) Max 14.63
Plate Height IP (H) Max 33.40
Plate Thickness  IP (T1) 6.00
Plate Thickness IP(T2) 5.00
Width Over Bearing Pin (A) Max 101.00
Width Over Joint Fastener (B) Max 107.60
Transverse Pitch (P1) 48.36
Average Weight Per Meter (kgs) 13.50
Tensite Strength (kgf) Min 28550
