Diamond Chain No. 12B-3 ,12b

Diamond British Standard Roller Chain 12B-3 , D120 , 19.05mm conforming to IS 606, BS228, DIN 8187. These British Standard Chains come with One ,Two and Three Strands .Please refer below for Complete Datasheet and Specification for 12B-3.

Diamond Chain No. 12B-3 Diamond Chain No. D120 ,12BDiamond Chain No. 12B-3.

We are Diamond roller chain Distributors, Stockists and Dealers. We can provide you Diamond chain with Octaforce sprocket at Best price. So you can buy complete Roller Chain and Sprockets from us .

You can send inquiry for size 12b by clicking here   for Diamond Roller Chain Prices

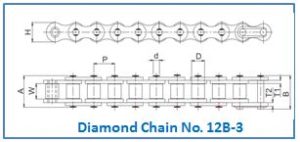

Intl Ref No. 12B-3
Daimond Chain No. D120
Number of Strands 03
Pitch (P) 19.05
Width Between Inner Plates (W) Min 11.68
Roller Diameter (D) Max 12.07
Bearing Pin Diameter (d) Max 5.72
Plate Height IP (H) Max 16.10
Plate Thickness  IP (T1) 1.81
Plate Thickness IP(T2) 1.76
Width Over Bearing Pin (A) Max 61.70
Width Over Joint Fastener (B) Max 66.30
Transverse Pitch (P1) 19.46
Average Weight Per Meter (kgs) 3.32
Tensite Strength (kgf) Min 8850
