Diamond Chain No. 05B-2 ,5b

Diamond British Standard Roller Chain 05B-2 , D05B , 8mm conforming to IS 606, BS228, DIN 8187. These British Standard Chains come with One ,Two and Three Strands .Please refer below for Complete Datasheet and Specification for 05B-2.

Diamond Chain No. 05B-2 Diamond Chain No. D05B-2 ,5BDiamond Chain No. 05B-2.

We are Diamond roller chain Distributors, Stockists and Dealers. We can provide you Diamond chain with Octaforce sprocket at Best price. So you can buy complete Roller Chain and Sprockets from us .

You can send inquiry for size 5b by clicking here   for Diamond Roller Chain Prices

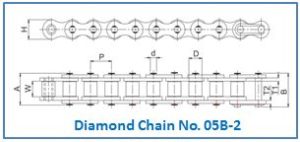

Intl Ref No. 05B-2
Daimond Chain No. D05B
Number of Strands 02
Pitch (P) 8.00
Width Between Inner Plates (W) Min 3
Roller Diameter (D) Max 5.00
Bearing Pin Diameter (d) Max 2.31
Plate Height IP (H) Max 7.10
Plate Thickness  IP (T1) 0.75
Plate Thickness IP(T2) 0.75
Width Over Bearing Pin (A) Max 14.30
Width Over Joint Fastener (B) Max 17.40
Transverse Pitch (P1) 5.64
Average Weight Per Meter (kgs) 0.32
Tensite Strength (kgf) Min 795
