Diamond Chain No.  D 481 , Pitch Size 3″ , 240-1

Diamond American Standard Roller Chain  D 481 , 240-1 , 3″ , 76.20mm conforming to ANSI B29.1 / 1SO 606 / DIN 8188. These American Standard Chains come with One ,Two and Three Strands depending on Part Number .Please refer below for Complete Datasheet and Specification for  D 481. , 3″ Pitch

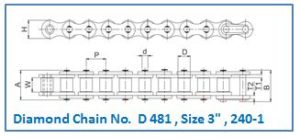

Diamond Chain No. D 481 , Size 3 , 240-1Diamond Chain No. D 481 , Size 3 , 240-1 .

We are Diamond roller chain Distributors, Stockists and Dealers. We can provide you Diamond chain with Octaforce sprocket at Best price. So you can buy complete Roller Chain and Sprockets from us .

You can send inquiry for size , 3″ Roller Chain by clicking here   for Diamond Roller Chain Prices

Intl Ref No. 240-1
Daimond Chain No. D481
Number of Strands 01
Pitch (P) 76.20
Width Between Inner Plates (W) Min 47.35
Roller Diameter (D) Max 47.63
Bearing Pin Diameter (d) Max 23.80
Plate Height IP (H1) 72.30
Plate Height IP (H2) 62.40
Plate Thinkness (T) 8.80
Width Over Bearing Pin (A) Max 95.50
Width Over Joint Fastener (B) Max 105.50
Transverse Pitch (P1) 87.83
Average Weight Per Meter (kgs) 23.63
Tensite Strength (kgf) Min 53050
