Diamond Chain No. B 06A , Pitch Size 3/8” , 35-3

Diamond American Standard Roller Chain B 06A , 35-3 , 3/8” , 9.525mm conforming to ANSI B29.1 / 1SO 606 / DIN 8188. These American Standard Chains come with One ,Two and Three Strands depending on Part Number .Please refer below for Complete Datasheet and Specification for B 06A. , 3/8” Pitch

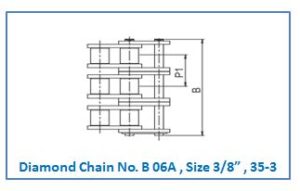

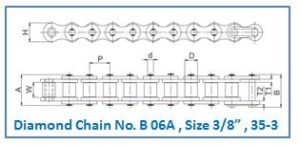

Diamond Chain No. B 06A , Size 38” , 35-3 Diamond Chain No. B 06A , Size 38” , 35-3. Diamond Chain No. B 06A , Size 38” , 35-3..

We are Diamond roller chain Distributors, Stockists and Dealers. We can provide you Diamond chain with Octaforce sprocket at Best price. So you can buy complete Roller Chain and Sprockets from us .

You can send inquiry for size , 3/8” Roller Chain by clicking here   for Diamond Roller Chain Prices

Intl Ref No. 35-3
Daimond Chain No. B 06A
Number of Strands 03
Pitch (P) 9.525
Width Between Inner Plates (W) Min 4.68
Roller Diameter (D) Max 5.08*
Bearing Pin Diameter (d) Max 3.59
Plate Height IP (H1) 8.65
Plate Height IP (H2) 7.48
Plate Thinkness (T) 1.25
Width Over Bearing Pin (A) Max 34.30
Width Over Joint Fastener (B) Max 37.50
Transverse Pitch (P1) 10.13
Average Weight Per Meter (kgs) 0.99
Tensite Strength (kgf) Min 2400
