Octaforce  is manufacturer and Exporter of Cast 400 Class Pintle Chain – G-19 Attachment  as part of   Engineering Chains , Roller Chains , Conveyor Chains ,Specialty Chain , Corrosion Chains ,agricultural chain , Transmission Chain

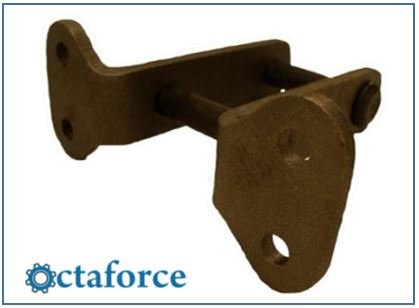

Cast 400 Class Pintle Chain – G-19 Attachment - Engineering Chains
G-19 Attachment - Cast 400 Class Pintle Chain - Engineering Chains
OCTA  Part No. OCTA/477 G-19 OCTA/488 G-19
Industry No. 477 G-19 488 G-19

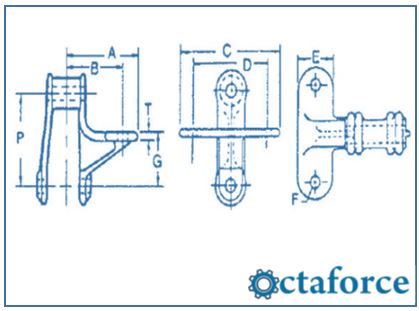

Pitch (P) 2.308 2.609
A 2.280 2.688
B 1.720 2.000
C 3.250 3.620
D 2.250 2.620
E 1.120 1.375
F 0.410 0.340
G 1.310 1.375
T 0.188 0.220
Unit of Measure in in



Applications and Industry for Cast 400 Class Pintle Chain – G-19 Attachment

Abattoirs • Air Conditioning • Aircraft - Civil & Military • Bakery Machines • Battery Manufacturing • Brewing • Canning • Carpet Machines • Chart Tables/Marine • Chocolate Manufacturing • Concrete Moulding Equipment • Copying Machines • Dairy Machinery • Drying Machinery • Earth Moving Equipment • Extrusion Machines • Filtration Plants • Food & Drink Manufacture • Glass Manufacture • Health Care Equipment • Hydraulic Components • Ice-Cream Manufacture • In-flight Refueling • Ingot Casting & Scrap Metal Processing • Latex Machinery • Laundry Machinery • Lawnmower Manufacture • Mill Machinery • Mining • MOT Brake Testing Machinery • Nuclear Power • Off Road Vehicles
