Octaforce is manufacturer and Exporter of C-Type Standard Roller Chain as part of Roller Chains , Engineering Chain , Conveyor Chains ,Specialty Chain, Corrosion Resistant Standard Roller Chain, Attachment Chain, Leaf Chain, Agricultural chain , Transmission Chain, Conveyor Corrosion Resistant Chain

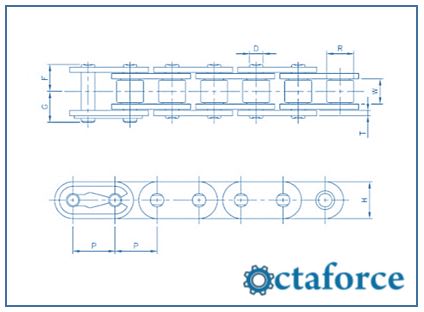

| OCTA Part No. | OCTA/C40 | OCTA/C50 | OCTA/C60 | OCTA/C80 | OCTA/C100 | OCTA/C120 | OCTA/C140 | OCTA/C160 |
| Industry No. | C40 | C50 | C60 | C80 | C100 | C120 | C140 | C160 |
| Pitch (P) | 0.500 | 0.625 | 0.750 | 1.000 | 1.250 | 1.500 | 1.750 | 2.000 |
| Roller Width (W) | 0.312 | 0.375 | 0.500 | 0.625 | 0.750 | 1.000 | 1.000 | 1.250 |
| Roller Diameter (R) | 0.312 | 0.400 | 0.469 | 0.625 | 0.750 | 0.875 | 1.000 | 1.125 |
| Plate Height (H) | 0.463 | 0.580 | 0.685 | 0.950 | 1.187 | 1.425 | 1.662 | 1.900 |
| Plate Thickness (T) | 0.060 | 0.080 | 0.094 | 0.125 | 0.156 | 0.187 | 0.219 | 0.250 |
| Pin Diam (D) | 0.157 | 0.200 | 0.235 | 0.313 | 0.376 | 0.437 | 0.5000 | 0.563 |
| Overall Width (F) | 0.324 | 0.400 | 0.501 | 0.650 | 0.781 | 1.005 | 1.074 | 1.290 |
| Overall Width (G) | 0.406 | 0.488 | 0.601 | 0.803 | 0.950 | 1.174 | 1.267 | 1.459 |
| Unit of Measure (Inches or Millimeters ) | in | in | in | in | in | in | in | in |
| Average Tensile Strength (Lbs.) | 4,189 | 6,834 | 9,259 | 17,637 | 25,353 | 34,392 | 46,297 | 57,982 |
Applications and Industry for C-Type Standard Roller Chain
Food & Drink Manufacture • Glass Manufacture • Health Care Equipment • Hydraulic Components • Ice-Cream Manufacture • In-flight Refueling • Ingot Casting & Scrap Metal Processing • Latex Machinery • Laundry Machinery • Lawnmower Manufacture • Mill Machinery • Mining • MOT Brake Testing Machinery • Nuclear Power • Off Road Vehicles • Oil Industry • Packaging Machines • Paper & Card Making • Paper Shredders • Plastic Machinery • Potato Grading Machinery • Power Generation • Printing Machines • Quarry Plant • Road Making & Plant Machinery • Robotic Systems • Roof Tile Manufacture • Ship's Engines
