Octaforce  is manufacturer and Exporter of ANSI Standard Roller Chain as part of Roller Chains , Engineering Chain , Conveyor Chains ,Specialty Chain, Corrosion Resistant Standard Roller Chain, Attachment Chain, Leaf Chain, Agricultural chain , Transmission Chain, Conveyor Corrosion Resistant Chain

Roller Chain- ANSI Standard Roller Chain (1)
Roller Chain-

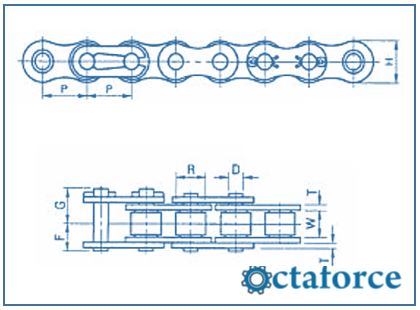

OCTA Part No. . OCTA/25 OCTA/35 OCTA/40 OCTA/41 OCTA/50 OCTA/60 OCTA/80 OCTA/100 OCTA/120 OCTA/140 OCTA/160 OCTA/180 OCTA/200 OCTA/240
Industry No. 25 35 40 41 50 60 80 100 120 140 160 180 200 240
Pitch (P) 0.250 0.375 0.500 0.500 0.625 0.750 1.000 1.250 1.500 1.750 2.000 2.250 2.500 3.000
Roller Width (W) 0.125 0.188 0.312 0.306 0.400 0.500 0.625 0.750 1.000 1.000 1.250 1.406 1.500 1.875
Roller Diameter (R) 0.130 0.200 0.312 0.250 0.375 0.469 0.625 0.750 0.875 1.000 1.125 1.406 1.562 1.875
Plate Height (H) 0.228 0.356 0.475 0.390 0.594 0.712 0.950 1.187 1.425 1.662 1.900 2.137 2.375 2.850
Plate Thickness (T) 0.030 0.050 0.060 0.050 0.080 0.094 0.125 0.156 0.187 0.219 0.250 0.281 0.312 0.375
Pin Diameter (D) 0.091 0.142 0.157 0.142 0.2000 0.235 0.313 0.376 0.4370 0.5000 0.563 0.687 0.781 0.937
Overall Width (F) 0.154 0.232 0.324 0.263 0.400 0.501 0.650 0.781 1.005 1.074 1.290 1.443 1.589 1.943
Overall Width (G) 0.185 0.277 0.406 0.334 0.488 0.601 0.803 0.950 1.174 1.267 1.459 1.659 1.825 2.179
Unit of Measure (Inches or Millimeters) in in in in in in in in in in in in in in
Average Tensile Strength (Lbs.) 1,036 2,469 4,188 2,866 6,834 9,259 17,636 25,353 34,392 46,297 57,761 84,216 109,128 154,323
Average Weight Per Foot (Lbs./Ft.) 0.087 0.215 0.417 0.276 0.679 0.974 1.714 2.654 3.790 4.959 6.317 8.514 10.684 16.396

Applications and Industry for ANSI Standard Roller Chain

Ingot Casting & Scrap Metal Processing • Latex Machinery • Laundry Machinery • Lawnmower Manufacture • Mill Machinery • Mining • MOT Brake Testing Machinery • Nuclear Power • Off Road Vehicles • Oil Industry • Packaging Machines • Paper & Card Making • Paper Shredders • Plastic Machinery • Potato Grading Machinery • Power Generation • Printing Machines • Quarry Plant • Road Making & Plant Machinery • Robotic Systems • Roof Tile Manufacture • Ship's Engines • Silkscreen Machinery • Ski-Lifts • Soot Blowers • Steel Making • Straddle Carriers • Sugar Beet Machines • Sun-Blinds • Telecommunications • Textile Machinery
