Octaforce  is Manufacturer and Exporter of ANSI Standard C-Type Double Pitch Roller Chain as part of Roller Chains , Engineering Chain , Conveyor Chains ,Specialty Chain, Corrosion Resistant Standard Roller Chain, Attachment Chain, Leaf Chain, Agricultural chain , Transmission Chain, Conveyor Corrosion Resistant Chain

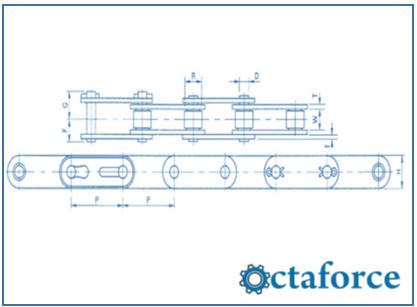

Roller Chain- ANSI Standard C-Type Double Pitch Roller Chain
Roller Chain- ANSI Standard C-Type Double Pitch Roller Chains
OCTA  Part No. OCTA/C2040 OCTA/C2050 OCTA/C2060H OCTA/C2060 OCTA/C2080H OCTA/C2100H OCTA/C2120H OCTA/C2160H
Industry No. C2040 C2050 C2060H C2060 C2080H C2100H C2120H C2160H
Pitch (P) 1.000 1.250 1.500 1.500 2.000 2.500 3.000 4.000
Roller Width (W) 0.312 0.375 0.500 0.500 0.625 0.750 1.000 1.250
Roller Diameter (R) 0.312 0.400 0.469 0.469 0.625 0.750 0.875 1.125
Plate Height (H) 0.475 0.594 0.712 0.712 0.950 1.187 1.369 1.900
Plate Thickness (T) 0.060 0.080 0.125 0.094 0.156 0.187 0.219 0.281
Pin Diam (D) 0.157 0.200 0.235 0.235 0.313 0.376 0.437 0.562
Overall Width (F) 0.324 0.400 0.567 0.501 0.715 0.860 1.072 1.339
Overall Width (G) 0.406 0.488 0.606 0.601 0.888 0.998 1.265 1.546
Unit of Measure (Inches or Millimeters) in in in in in in in in
Average Tensile Strength (Lbs.) 4,189 6,834 12,125 9,259 20,503 30,865 40,345 69,446
Average Weight Per Foot (Lbs./Ft.) 0.316 0.538 0.947 0.759 1.599 2.459 3.481 5.745

Applications and Industry for ANSI Standard C-Type Double Pitch Roller Chain

Abattoirs • Air Conditioning • Aircraft - Civil & Military • Paper & Card Making • Paper Shredders • Plastic Machinery • Potato Grading Machinery • Power Generation • Printing Machines • Quarry Plant • Road Making & Plant Machinery • Robotic Systems • Roof Tile Manufacture • Ship's Engines • Silkscreen Machinery • Ski-Lifts • Soot Blowers • Steel Making • Straddle Carriers • Sugar Beet Machines • Sun-Blinds • Telecommunications • Textile Machinery • Timber and Woodworking Machines • Tin Printer Ovens • Tobacco/Cigarette Machinery
